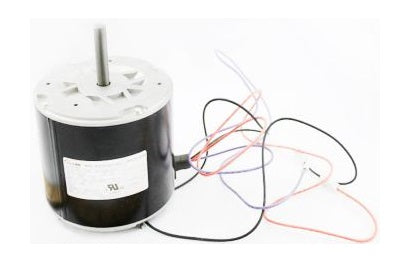

68J24 Condenser Fan Motor – 1/3 HP, 208/230V 68J2401

Specifications

Part Number: 68J2401
Catalog Number: 68J24
Brand: Lennox
Manufacturer: Nidec
Product Type: Condenser Fan Motor
Motor Type: PSC
Horsepower: 1/3 HP
Voltage: 208/230V
Phase: Single Phase
Frequency: 60 Hz
Amperage: 2.1A
Speed: 1 Speed
RPM: 1075 RPM
Rotation: CCWLE
Frame Size: 48
Bearing Type: Sleeve
Shaft Length: 2.75"
Shaft Diameter: 1/2"

Lennox 68J24 Condenser Fan Motor

The Lennox 68J24 / 68J2401 is a 1/3 HP PSC condenser fan motor used in select Lennox air conditioners and heat pumps. The motor operates the outdoor condenser fan, pulling air through the condenser coil to remove heat from the refrigerant during cooling operation.

The 68J24 operates at 1075 RPM on 208/230V power and uses a single-speed design with counter-clockwise rotation when viewed from the lead end.

Common Symptoms of a Failed 68J24 Condenser Fan Motor

A failing Lennox 68J24 condenser fan motor can cause:

• Condenser fan not starting
• Fan starting and stopping intermittently
• Motor overheating
• Motor shutting off on thermal overload
• Fan running slower than normal
• Grinding, squealing or excessive motor noise
• High motor amperage
• Condenser fan blade difficult to turn
• Compressor running while the condenser fan is stopped
• High head pressure caused by loss of condenser airflow

A weak or failed condenser fan motor can cause the outdoor unit to overheat and may eventually cause the compressor to shut down on high pressure or thermal protection.
