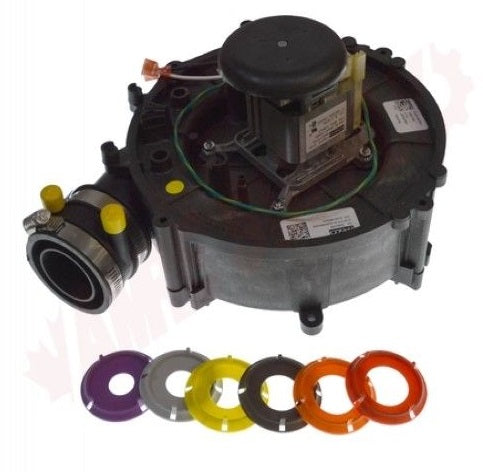

York S1-32649692000 Furnace Inducer Motor Assembly

Specifications

• Part Number: S1-32649692000
• Part Number: 32649692000
• Type: Furnace Draft Inducer Motor Assembly
• Voltage: 115V
• Frequency: 60 Hz
• Amperage: 2.63 FLA
• Speed: 3000 RPM
• Application: High-efficiency condensing furnaces
• Brands: York, Coleman, Luxaire and Evcon

Replaces

• S1-32642583000
• S1-02642583000
• S1-32647781000
• S1-02647781000

Furnace Series Compatibility

• GG9S
• TG9S
• MG9S
• RGF19E
• RGF19P
• TM9E
• TM9X
• YM9M
• CM9M
• LM9M
• TM9M
• YP9C
• CP9C
• LP9C
• TP9C

Furnace Models

• CP9C120D20MP12CA
• CM9M060B12MP11
• CM9M080B12MP11
• CM9M080C16MP11
• CM9M100C16MP11
• CM9M100C20MP11
• CM9M120D20MP11
• CP9C060B12MP11
• CP9C060B12MP12C
• CP9C080B12MP11
• CP9C080B12MP12C
• CP9C080C16MP11
• CP9C080C16MP12C
• CP9C100C16MP11
• CP9C100C16MP12C
• CP9C100C20MP11
• CP9C100C20MP12C
• CP9C120D20MP11
• CP9C120D20MP12C
• GG9S040A08MP11
• RGF19080BP12MP11
• TM9X080B12MP11A
• TG9S060B12MP11A
• TG9S080B12MP11A
• TG9S080C16MP11
• TG9S100C16MP11
• TG9S120D20MP11

Symptoms of a Failing Inducer Motor

• Furnace will not ignite – The inducer may not create enough draft to close the pressure switch.
• Inducer motor does not start when there is a call for heat.
• Humming or buzzing while the inducer motor is trying to start.
• Grinding or squealing noises from worn motor bearings.
• Rattling or excessive vibration from the inducer assembly.
• Pressure switch fault codes caused by insufficient draft.
• Intermittent operation where the inducer starts sometimes but fails at other times.
• Furnace goes into ignition lockout after repeated unsuccessful heating attempts.

A pressure-switch error does not always mean the inducer motor has failed. Venting restrictions, condensate drainage problems, pressure-switch tubing or the pressure switch itself should also be checked.
