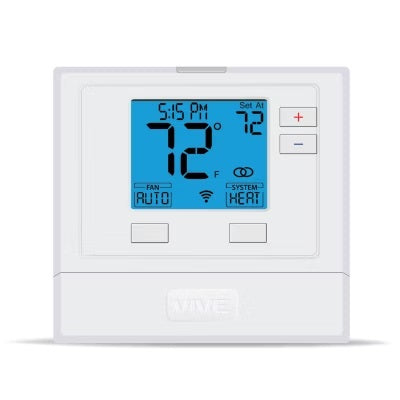

Vive Comfort TP-S-701i Single Stage WiFi Thermostat

Specifications

Part Number: TP-S-701i
Brand: Vive Comfort
Product Type: WiFi Thermostat
Stages: Single Stage
Conventional Systems: 1 Heat / 1 Cool
Gas or Oil Heat: Compatible
Electric Furnace: Compatible
Heat Pump: Compatible – Without Auxiliary or Emergency Heat
Multi-Stage Systems: Not Compatible
Power Supply: 18–30 VAC, 50/60 Hz
Common Wire: Required for hardwired power
WiFi Frequency: 2.4 GHz
WiFi Standard: 802.11 B/G/N
Temperature Display Range: 41°F–95°F (5°C–35°C)
Temperature Control Range: 44°F–90°F (7°C–32°C)
Display Accuracy: ±1°F
Heating Swing Adjustment: 0.2°F–2.0°F
Cooling Swing Adjustment: 0.2°F–2.0°F
Load Rating: 1 Amp per terminal, 1.5 Amp maximum combined
Operating Temperature: 32°F–105°F (0°C–41°C)
Maximum Operating Humidity: 90% non-condensing
Display: Digital backlit LCD
Remote Control: WiFi / Vive Comfort App
Programming: Programmable through app

The Vive Comfort TP-S-701i is a single-stage WiFi thermostat designed for residential heating and air conditioning systems. WiFi connectivity allows the thermostat to be monitored and adjusted remotely while still allowing normal operation directly from the thermostat.

Common Symptoms of a Failed TP-S-701i Thermostat

A faulty Vive TP-S-701i thermostat can cause the furnace or AC system to operate incorrectly. Common symptoms include:

• Furnace does not start on a call for heat
• AC condenser does not start on a cooling call
• Thermostat display is blank or unresponsive
• Thermostat does not maintain the selected temperature
• Heating or cooling operates intermittently
• Fan does not respond correctly to ON or AUTO settings
• Thermostat loses WiFi connection repeatedly
• Thermostat will not connect to the Vive Comfort app
• Incorrect room temperature displayed
• Heating or cooling continues after reaching the set temperature
• Equipment operates correctly when thermostat terminals are jumped but will not operate from the thermostat

Before replacing the TP-S-701i, verify that the HVAC equipment has proper 24V control power and that the thermostat wiring and common connection are secure.

TP-S-701i Replacement WiFi Thermostat

The Vive Comfort TP-S-701i Single Stage WiFi Thermostat can be used with compatible furnaces, air conditioners and single-stage heat pump systems.

Always confirm the TP-S-701i part number, wiring configuration and HVAC system compatibility before ordering a replacement.

Buy the Vive Comfort TP-S-701i Single Stage WiFi Thermostat from OemHvacPartsCanada.ca.
