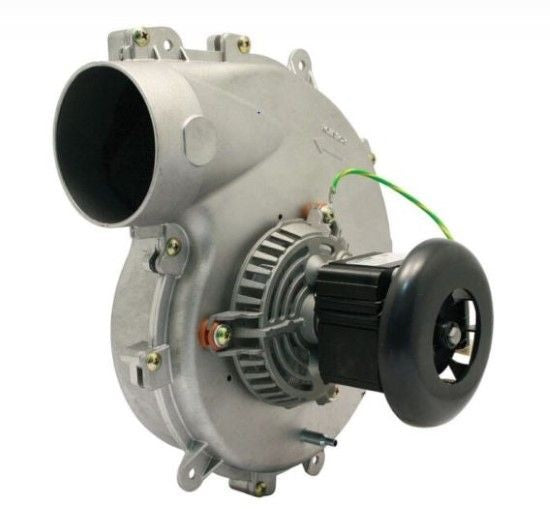

Rotom FB-RFB383 ICP Draft Inducer Motor – 1013833, Fasco A172

Specifications

• Part Number: FB-RFB383
• Brand: Rotom / Alltemp
• Product Type: Draft Inducer / Flue Exhaust Blower
• Horsepower: 1/26 HP
• Voltage: 115V
• Amperage: 1.6A
• Speed: 3000 RPM
• Speeds: Single Speed
• Motor Type: Shaded Pole
• Bearing: Ball Bearing
• Rotation: CCW
• Body Length: 6.50 in.
• Motor Diameter: 3.3 in.
• Outlet Diameter: 2-15/16 in.
• Application: ICP Gas Furnaces
• Includes: Inducer assembly and gasket

Replacement & Cross Reference Part Numbers

The Rotom FB-RFB383 replaces or cross-references with:

• 1013833
• 1010975 / 1010975P
• 1010324
• 1010238 / 1010238P
• 1708607 / 1708607P
• 7021-7700
• 7021-8735
• 7021-8736
• 7021-9335
• 7021-9477
• 7021-9499
• 7021-9744
• 7021-9918
• 7002-2633
• 7002-2792
• Fasco A172
• Fasco A134
• Fasco A051
• Fasco 7058-1037
• Rotom FB-RFB833
• Rotom R7-RFB134
• Packard 66833
• Nidec N172
• Emerson 3111
• MARS 10705
• Jakel J238-1393 / J238-13933
• 4MH28

Compatible Brands

Used on select furnaces manufactured by International Comfort Products, including:

• ICP
• KeepRite
• Heil
• Tempstar
• Comfortmaker
• Arcoaire
• Day & Night

Compatible Furnace Models

The FB-RFB383 / 1013833 inducer is used on select ICP furnace models including:

FBF Series:
FBF050B12A1, FBF050B12A2, FBF050B12A3, FBF050B12A4, FBF050B12G1, FBF075B12A1, FBF075B12A2, FBF075B12A3, FBF075B12A4, FBF075B12A5, FBF075B12G1, FBF075F16A1, FBF075F16A2, FBF075F16A3, FBF075F16A4, FBF075F16A5, FBF075F16G1, FBF100F14A1, FBF100F14A2, FBF100F14A3, FBF100F14A4, FBF100F14G1, FBF100F20A1, FBF100F20A2, FBF100F20A3, FBF100F20A4, FBF100F20G1, FBF100J22A4, FBF100J22G1, FBF125J20A1, FBF125J20A2, FBF125J20A3, FBF125J20A4, FBF125J20A5, FBF125J20G1

GDE Series:
GDE050B12A1, GDE050B12A2, GDE050B12G1, GDE075B12A1, GDE075B12A2, GDE075B12A3, GDE075B12G1, GDE075F16A1, GDE075F16A2, GDE075F16A3, GDE075F16G1, GDE100F14A1, GDE100F14A2, GDE100F14G1, GDE100F20A1, GDE100F20A2, GDE100F20G1, GDE125J20A1, GDE125J20A2, GDE125J20A3, GDE125J20G1

GNE Series:
GNE050B12A1, GNE050B12B1, GNE050B12G1, GNE075B12A1, GNE075B12A2, GNE075B12B1, GNE075B12G1, GNE075B16B1, GNE075F16A1, GNE075F16A2, GNE075F16G1, GNE100F14A1, GNE100F14B1, GNE100F14G1, GNE100F20A1, GNE100F20B1, GNE100F20G1, GNE100J20A1, GNE100J20G1, GNE125J20A1, GNE125J20A2, GNE125J20B1, GNE125J20G1

NBF Series:
NBF050B12A1, NBF050B12A2, NBF050B12G1, NBF075B12A1, NBF075B12A2, NBF075B12A3, NBF075B12G1, NBF075F16A1, NBF075F16A2, NBF075F16A3, NBF075F16G1, NBF100F20A1, NBF100F20A2, NBF100F20G1, NBF100J20A1, NBF100J20A2, NBF100J20G1, NBF125J20A1, NBF125J20A2, NBF125J20A3, NBF125J20G1

NDF / NNE Series:
NDF050B12A1, NDF050B12G1, NDF075B12A1, NDF075B12G1, NDF075F16A1, NDF075F16G1, NDF100F14A1, NDF100F14G1, NDF100F20A1, NDF100F20G1, NDF125J20A1, NDF125J20G1, NNE050B12A1, NNE050B12G1, NNE075B12A1, NNE075B12A2, NNE075B12G1, NNE075F16A1, NNE075F16A2, NNE075F16G1, NNE100F20A1, NNE100F20G1, NNE100J20A1, NNE100J20G1, NNE125J20A1, NNE125J20A2, NNE125J20G1

Rotom FB-RFB383 Draft Inducer Motor

The Rotom FB-RFB383 is a 115V, 3000 RPM replacement draft inducer blower used on select ICP, KeepRite, Heil, Tempstar, Comfortmaker and Arcoaire gas furnaces.

It is commonly used as a replacement for ICP 1013833 and cross-references with Fasco A172, Packard 66833 and Rotom FB-RFB833.

Common Symptoms of a Failed Inducer Motor

• Inducer motor will not start
• Grinding or squealing noise
• Inducer starts intermittently
• Pressure switch will not close
• Furnace will not ignite
• Furnace shuts down during the heating cycle
• Motor overheats or stops
• Excessive inducer vibration
