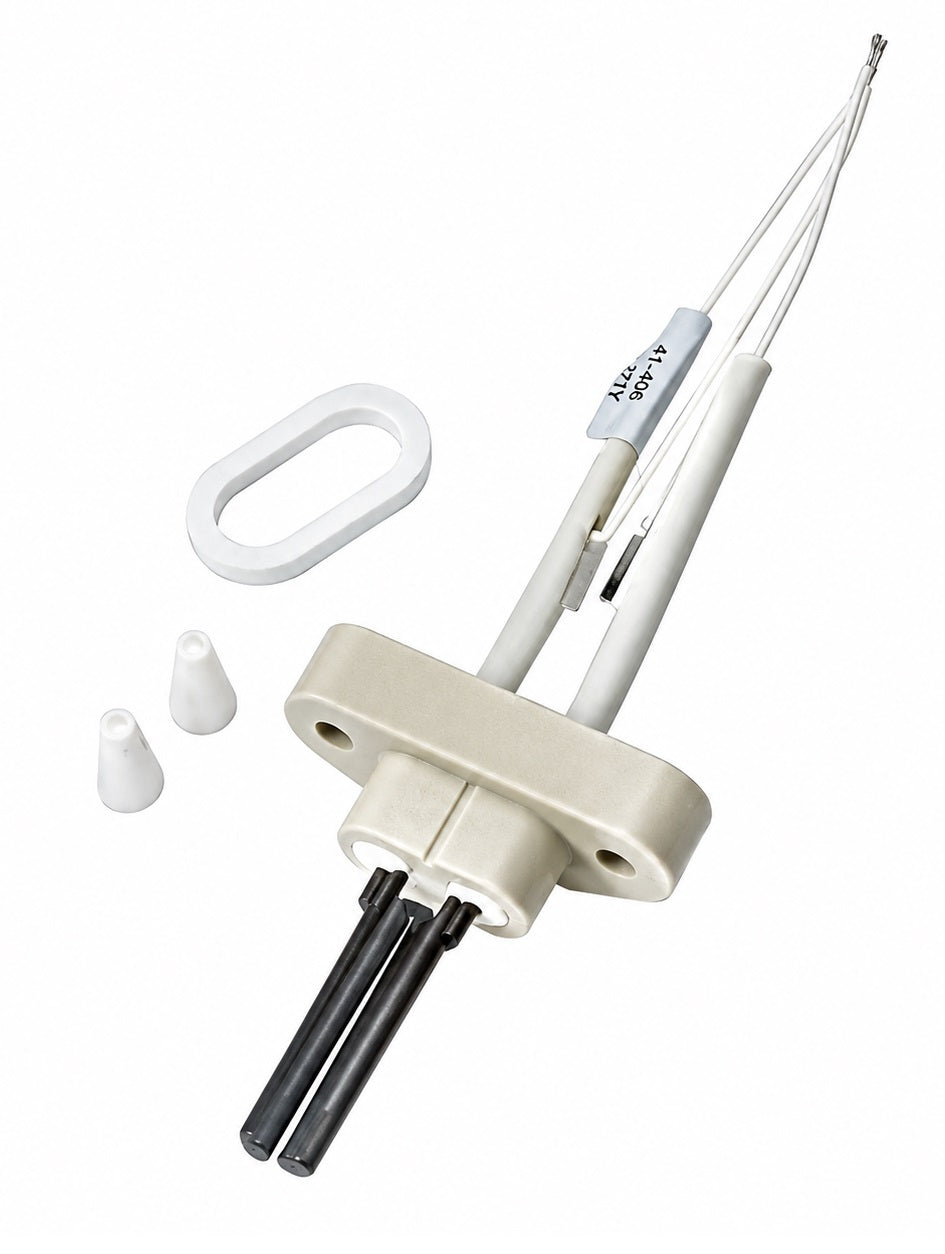

Robertshaw 41-406 120V Hot Surface Furnace Ignitor – 271Y

Specifications

• Part Number: 41-406
• Brand: Robertshaw
• Product Type: Hot Surface Ignitor
• Series: 41-400 Carbide Series
• Voltage: 120 VAC
• Ignitor Material: Silicon Carbide
• Factory Part Number: 271Y
• Ceramic Block Style: E
• Lead Wire Length: 11 in. / 279.4 mm
• Terminal Connection: Wire Leads / No Connector
• Warm-Up Time: Up to 17 Seconds
• Application: Furnaces, Boilers, Water Heaters, Unit Heaters and other gas-fired equipment

Robertshaw confirms the 120V rating, 271Y factory number, Style E ceramic block and 11-inch leads.

Replacement & Cross Reference Part Numbers

The Robertshaw 41-406 replaces or cross-references with:

• 41-406
• 41-406N
• 271Y
• 271M
• 271B
• 201B
• 201J
• 201M
• 201Y
• 511-330-188 – Weil-McLain
• Q4100C9050/U – Honeywell
• 767A-374 – White-Rodgers
• IG406 – Supco
• SIG-406 – Supco
• SIG-106 – Supco
• IGN-406 – DiversiTech
• 67925 – MARS
• IG-106 – Gemline
• DS406
• DS406KX
• 63471
• 6901800
• 6903767
• 6903768
• LCVT27021G – Lochinvar
• PLT2400 – Lochinvar
• PLT2702 – Lochinvar
• 3200580
• 3210401
• MB457027
• MB478268
• MB478601
• 99794326
• 108803-G1

These cross-references come directly from Robertshaw's 41-406 data.

Robertshaw 41-406 Hot Surface Ignitor

The Robertshaw 41-406 is a 120V silicon carbide hot surface ignitor used in a wide range of gas-fired heating equipment.

The 41-406 is commonly used as a replacement for Norton 271Y and 201Y, Weil-McLain 511-330-188, Honeywell Q4100C9050/U, White-Rodgers 767A-374, Supco IG406 and other equivalent hot surface ignitors.

Common Symptoms of a Failed Hot Surface Ignitor

• Furnace will not ignite
• Ignitor does not glow
• Ignitor is cracked or damaged
• Furnace attempts ignition but burners do not light
• Intermittent ignition problems
• Furnace goes into ignition lockout

Applications

The Robertshaw 41-406 can be used in compatible:

• Gas furnaces
• Boilers
• Water heaters
• Unit heaters
• Rooftop heaters
• Infrared burners

Robertshaw lists the 41-406 for these types of heating equipment.

Buy Robertshaw 41-406 Hot Surface Ignitor in Canada

Buy the Robertshaw 41-406 120V Hot Surface Furnace Ignitor from OemHvacPartsCanada.ca. The 41-406 replaces many common furnace and boiler ignitors including 271Y, 201Y, 511-330-188, Q4100C9050/U, 767A-374 and IG406.
