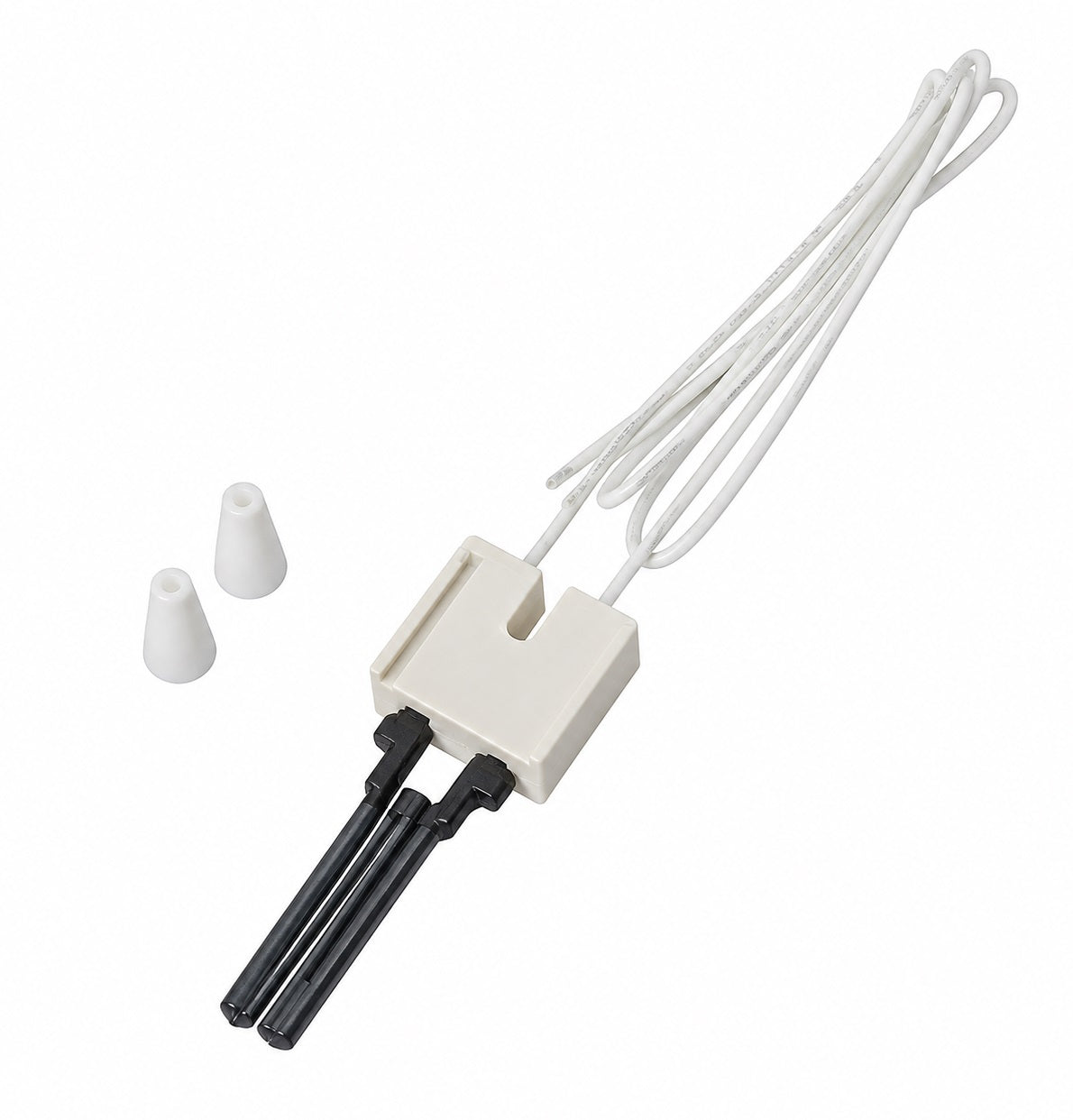

Robertshaw 41-402 120V Hot Surface Furnace Ignitor – 271W

Specifications

• Part Number: 41-402
• Brand: Robertshaw
• Product Type: Hot Surface Furnace Ignitor
• Factory Part Number: 271W
• Series: Robertshaw 41-400
• Ignitor Type: Silicon Carbide
• Voltage: 120 VAC
• Ceramic Block Style: B
• Lead Wire Length: 19-1/8 in. (485.8 mm)
• Terminal Connector: None / Wire Leads
• Warm-Up Time: Up to 17 seconds
• Application: Furnaces, boilers, rooftop heaters, unit heaters, water heaters and other compatible gas-fired equipment

Robertshaw confirms the 271W factory number, Style B ceramic block, 19-1/8-inch leads and 120V operation.

Replacement & Cross-Reference Part Numbers

The Robertshaw 41-402 / 271W replaces or cross-references with:

Robertshaw / Norton

• 41-402
• 41-402N
• 41-238
• 41-242
• 271W
• 271N
• 201W
• 201N
• 201K
• 201L
• 201P
• 201R
• MB258911
• MB478264

Goodman / Amana

• 10735003A
• 10755002
• B11726-06

Rheem

• 62-22441-01
• 62-22868-02
• 62-22868-93

Trane

• 340039P01
• 340039P1
• IGN00023
• IGN21
• IGN23

York

• 025-32625-000
• S1-02532625000

Nordyne / Frigidaire

• 105141000
• 632-0770
• 632-0880
• 6320770
• 6320880
• 6323540
• 632-3540
• RH622286893

Armstrong

• 38322B001

Coleman / Evcon

• 1474-051
• 1474-052

White-Rodgers

• 767A-35
• 767A-371

Honeywell

• Q4100C9046/U

Supco

• SIG-402

DiversiTech

• IGN-402

MARS

• 67909
• 67915
• 67923

Other Cross References

• 100-9980
• 6905032
• C-238
• C-242
• 20834
• FI-402
• 10399
• ZCO-350
• 9050
• 3260618
• 3200618
• 26789
• 90436600
• 94851
• 62821-001
• 62821-002
• 79074
• 99794323
• 120-07549
• 63467

These numbers are listed in Robertshaw's current cross-reference data for the 41-402.

Robertshaw 41-402 Hot Surface Ignitor

The Robertshaw 41-402 is a 120V silicon carbide hot surface ignitor used in a wide range of gas-fired heating equipment.

It is also identified by the factory number 271W and replaces numerous OEM furnace ignitors from manufacturers including Goodman, Amana, Rheem, Armstrong, Trane, York, Nordyne, Coleman and Frigidaire.

The 41-402 uses high-purity recrystallized silicon carbide and is designed to reach ignition temperature within approximately 17 seconds.

Common Applications

The Robertshaw 41-402 can be used in compatible:

• Gas furnaces
• Boilers
• Unit heaters
• Rooftop heaters
• Water heaters
• Infrared heating equipment

Common Symptoms of a Failed Hot Surface Ignitor

• Ignitor does not glow
• Furnace will not ignite
• Burners fail to light
• Furnace repeatedly attempts ignition
• Intermittent ignition
• Furnace goes into ignition lockout
• Ignitor is visibly cracked or damaged

41-402 / 271W Replacement Ignitor

The 41-402 is particularly useful when replacing an older ignitor identified as 271W.

It also provides a replacement option for common OEM numbers including Rheem 62-22441-01, Armstrong 38322B001, Goodman B11726-06, Trane IGN23, York 025-32625-000 and White-Rodgers 767A-371.

Buy Robertshaw 41-402 Ignitor in Canada

Buy the Robertshaw 41-402 / 271W 120V Hot Surface Furnace Ignitor from OemHvacPartsCanada.ca.

The 41-402 is a replacement hot surface ignitor for select Goodman, Amana, Rheem, Armstrong, Trane, York, Nordyne, Coleman and other gas-fired heating equipment.
