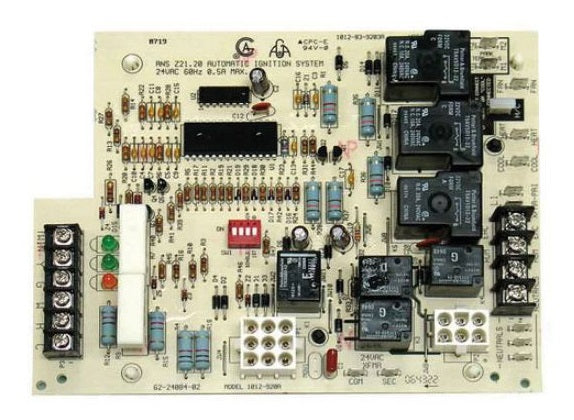

Rheem Ruud 62-24084-82 ProTech Furnace Control Board

Specifications

• Part Number: 62-24084-82
• Brand: Rheem / Ruud ProTech
• Product Type: Integrated Furnace Control Board
• Ignition Type: Hot Surface Ignition (HSI)
• Voltage: 120/24V
• Amperage: 1 Amp
• Pre-Purge: 30 Seconds
• Gas Type: Natural Gas or LP
• Application: Gas Furnace
• Control: Gas valve, inducer motor, circulating blower and hot surface ignitor

The 62-24084-82 is designed for Rheem and Ruud furnaces equipped with hot surface ignition.

Replacement & Cross-Reference Part Numbers

The Rheem/Ruud 62-24084-82 replaces the following control boards:

• 62-22694-01
• 62-22694-02
• 62-22694-03
• 62-22694-11
• 62-22694-12
• 62-22694-82
• 62-22694-83
• 62-22694-91
• 62-22737-06
• 62-22737-07
• 62-22737-08
• 62-22737-10
• 62-22737-87
• 62-22737-88
• 62-24044-01
• 62-24044-81
• 62-24044-91
• 62-24045-01
• 62-24046-01
• 62-24084-01
• 62-24084-02
• 62-24084-71
• 62-24084-91
• 62-24084-92

These replacement numbers come directly from Rheem's documentation for the 62-24084-82.

Rheem 62-24084-82 Furnace Control Board

The Rheem ProTech 62-24084-82 is an integrated furnace control board used in select Rheem and Ruud gas furnaces with hot surface ignition.

The control board manages the furnace ignition sequence and operation of components including the inducer motor, hot surface ignitor, gas valve and circulating blower.

Compatible Rheem & Ruud Furnace Series

The 62-24084-82 is used with select furnace models from series including:

90+ Series

• RGRA
• RGSA
• RGTA
• RGZC
• RGZD

80+ Series

• RGDG
• RGDJ
• RGLG
• RGLH
• RGLJ
• RGPH
• RGPJ
• RGVG
• RGVH
• RGVJ
• 80LJ
• 80PJ

Additional Ruud equivalents include UGDG, UGDJ, UGLG, UGLH, UGLJ, UGPH, UGPJ, UGRA, UGSA, UGTA, UGVG, UGVH and UGVJ.

Important Flame Sensor Information

Some older furnaces may also require the Rheem 62-24044-71 Flame Sensor Kit.

Rheem specifically states that furnaces manufactured before date code 3294 may require the addition of the 62-24044-71 flame sensor kit.

HSI vs. DSI Control Board

The 62-24084-82 is for Hot Surface Ignition (HSI) systems.

Rheem states that furnaces equipped with Direct Spark Ignition (DSI) require a different control board. Do not substitute the 62-24084-82 for a DSI control without confirming compatibility.

Common Symptoms of a Failed Furnace Control Board

• Furnace will not start
• Inducer motor does not energize
• Hot surface ignitor does not energize
• Gas valve does not receive power
• Blower does not operate correctly
• Blower runs continuously
• Furnace starts and then stops
• Intermittent furnace operation
• Furnace fails to complete the ignition sequence

Other furnace components can cause similar symptoms, so the control board should be properly diagnosed before replacement.
