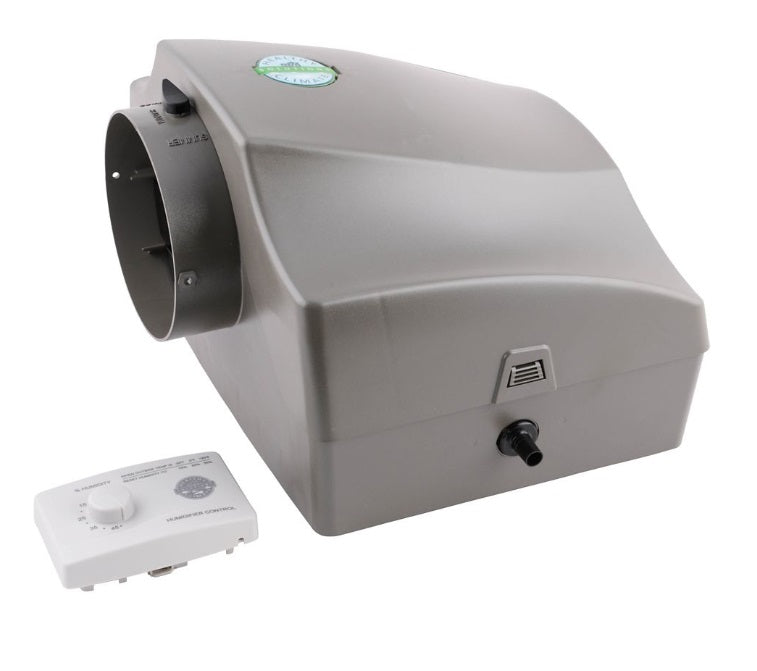

Lennox Healthy Climate HCWB3-17 Whole House Bypass Humidifier - (Y2786)

Specifications

• Manufacturer: Lennox Healthy Climate
• Part Number: Y2786
• Model Number: HCWB3-17
• Product Type: Whole House Bypass Humidifier
• Control Type: Manual Humidistat
• Voltage: 24 VAC
• Electrical Rating: 24V, 60Hz, 0.5 Amps
• Humidification Capacity: Up to 17 Gallons Per Day
• Application: Whole Home Humidification
• Compatible With: All Forced-Air HVAC Systems
• Dimensions: 15.875" D × 10.5" W × 9.5" H
• Maintenance: Annual Water Panel Replacement Recommended
• OEM: Genuine Lennox Healthy Climate Replacement
• Warranty: 5-Year Limited Warranty on Covered Components

Common Symptoms of a Failing Lennox HCWB3-17 Humidifier

If you're servicing a whole-home humidifier in Calgary, Edmonton, Red Deer, Lethbridge, Medicine Hat, or anywhere throughout Alberta, or maintaining HVAC equipment in the Greater Toronto Area including Toronto, Mississauga, Brampton, Vaughan, Markham, Richmond Hill, Oakville, Burlington, Ajax, Whitby, and Oshawa, a faulty humidifier or one requiring maintenance may cause the following issues:

• Indoor humidity remains low during the heating season.
• Dry skin, dry throat, static electricity, or frequent nosebleeds inside the home.
• Little or no water flowing through the humidifier.
• Clogged or mineral-covered water panel reducing moisture output.
• Faulty humidistat causing the humidifier not to operate.
• Solenoid valve fails to open, preventing water flow.
• Water leaks from the humidifier due to a plugged drain or damaged water panel.
• Excessive mineral buildup reducing humidifier performance.
• Furnace blower operates normally, but the home humidity never reaches the desired setting.
• Water panel requires annual replacement to maintain proper humidity output.
