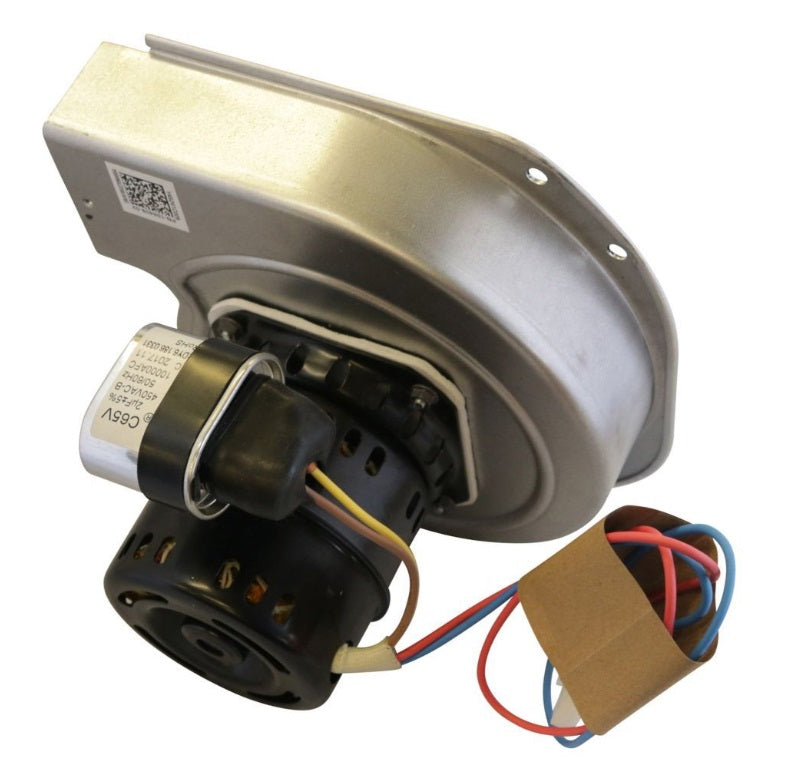

Lennox 69M33 Inducer Motor 1/12 HP, PSC, 208-230 VAC 50/60 Hz, 3200 RPM

Specifications

• Part Number: 69M33
• Model Number: 69M3301
• Brand: Lennox
• Product Type: OEM Combustion Air Blower / Draft Inducer Assembly
• Horsepower: 1/12 HP
• Voltage: 208-230 VAC
• Phase: Single Phase (1 PH)
• Frequency: 50/60 Hz
• Motor Type: PSC
• RPM: 3200/3250 RPM
• Amperage: 0.32 A
• Gross Weight: 6.9 lbs
• Application: Gas Furnace / Rooftop Unit Combustion Air Blower

Common Symptoms of a Failing Lennox 69M33 Combustion Air Blower

A failing Lennox 69M33 combustion air blower can prevent your furnace or rooftop unit from operating safely by failing to provide the proper airflow needed for combustion. Whether you're located in Calgary, Edmonton, Red Deer, Lethbridge, Medicine Hat, or anywhere in Alberta, or in the Greater Toronto Area, including Toronto, Mississauga, Brampton, Vaughan, Markham, Richmond Hill, Oakville, Burlington, Milton, Ajax, Pickering, and Oshawa, common symptoms of a failing draft inducer include:

• Inducer motor fails to start when there is a call for heat.
• Motor hums but the blower wheel does not turn.
• Furnace locks out on a pressure switch fault.
• Pressure switch will not close due to insufficient draft.
• Grinding, squealing, or rattling noises coming from the inducer assembly.
• Burners ignite briefly and then shut off.
• Furnace repeatedly attempts to ignite before entering lockout.
• Motor overheats or starts intermittently.
• Reduced draft causing poor combustion performance.
• Visible corrosion or excessive play in the inducer motor bearings.
