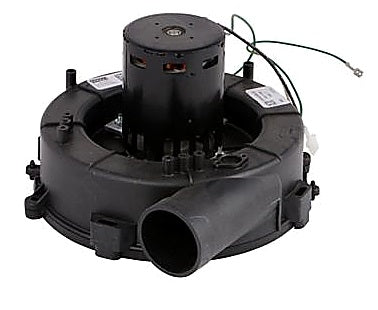

Lennox 47M55 / LB-94724D Draft Inducer Motor Assembly – 1/20 HP, 115V, 3400 RPM

Specifications

Catalog Number: 47M55
Part Number: LB-94724D
Brand: Lennox
Product Type: Combustion Air Blower / Draft Inducer Assembly
Motor Manufacturer: Fasco
Fasco Motor Number: 7021-11406
Horsepower: 1/20 HP
Voltage: 115V
Phase: Single Phase
Frequency: 60 Hz
Amperage: 1.8A
RPM: 3400 RPM
Bearing: Sealed Ball Bearing
Rotation: Clockwise, Lead End
Inlet Diameter: 2"
Outlet Diameter: 2"
Includes: Inducer Assembly and Gasket

Replaces

83L41
83L4101
LB-94724D

Other numbers associated with this inducer include:

7021-11406
JK8448929-2

Furnace Models That Use the 47M55

Lennox documentation confirms the 47M55 combustion air inducer for G41UF, G43UF and G51MP furnace applications.

Compatible furnace models include:

G41UF-24B-045-01
G41UF-36B-045-01
G41UF-36B-070-01
G41UF-36C-090-01
G41UF-48C-090-01
G41UF-48C-110-01
G41UF-60C-090-01
G41UF-60C-110-01
G41UF-60D-135-01

G43UF-24B-045-01
G43UF-24B-070-01
G43UF-36B-070-01
G43UF-36C-090-01
G43UF-48C-090-01
G43UF-48C-110-01
G43UF-60C-110-01
G43UF-60D-135-01

G51MP-24B-045-01
G51MP-36B-045-01
G51MP-36B-070-01
G51MP-36C-090-01
G51MP-48C-090-01
G51MP-48C-110-01
G51MP-60C-090-01
G51MP-60C-110-01
G51MP-60D-135-01

Signs of a Faulty 47M55 Inducer Motor

A failing 47M55 / LB-94724D inducer motor may cause:

• Inducer motor does not start
• Grinding, squealing or rattling from the inducer
• Motor starts slowly or intermittently
• Inducer motor overheats
• Furnace pressure switch does not close
• Inducer runs but does not produce enough draft
• Furnace begins its heating sequence but does not proceed to ignition

Bearing noise or excessive inducer vibration can also indicate that the motor or blower assembly is beginning to fail.
