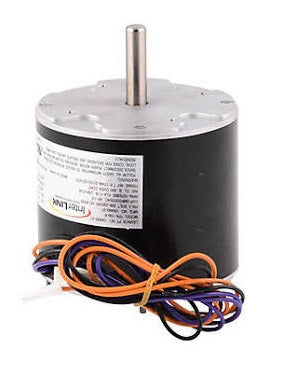

Lennox 43W49 Condenser Fan Motor (100483-21)

Specifications

Part Number: 43W49
Manufacturer Part Number: 100483-21
Brand: Lennox
Product Type: Condenser Fan Motor
Application: Residential Air Conditioners and Heat Pumps
Motor Type: PSC (Permanent Split Capacitor)
Horsepower: 1/5 HP
Voltage: 208/230 VAC
Phase: Single Phase
Frequency: 50/60 Hz
Speed: 1075 RPM
Frame Size: 42 Frame
Amperage: 1.1 A
Number of Speeds: 1 Speed
Rotation: CCWLE (Counter Clockwise Lead End)
Bearing Type: Ball Bearing
Capacitor Required: 5 MFD, 370 VAC
Shaft Size: 1/2" x 1.8"
Mounting Type: Stud Mount (Vertical)
Genuine OEM Replacement Part

Common Symptoms

If your Lennox air conditioner or heat pump in Calgary, Edmonton, Red Deer, Lethbridge, Medicine Hat, or anywhere in Alberta, or throughout the Greater Toronto Area, including Toronto, Mississauga, Brampton, Vaughan, Markham, Richmond Hill, Oakville, Burlington, Milton, Ajax, Pickering, and Oshawa, is experiencing poor cooling, an outdoor fan that won't start, a fan motor that hums but won't turn, slow fan operation, grinding or squealing noises, intermittent condenser fan operation, or the system shutting down on high head pressure due to overheating, the Lennox 43W49 Condenser Fan Motor (100483-21) may need to be replaced. This genuine OEM 1/5 HP, 208/230V, 1075 RPM condenser fan motor is designed to restore proper airflow across the condenser coil for reliable cooling performance.

Buy your genuine OEM Lennox 43W49 Condenser Fan Motor (100483-21) from OemHvacPartsCanada.ca.
