Lennox 32804 / P-8-8609 Blower Motor – 1/3 HP, 208/230V, 1075 RPM

Specifications

Catalog Number: 32804
Part Number: P-8-8609
Brand: Lennox Approved
Product Type: Furnace Blower Motor
Horsepower: 1/3 HP
Voltage: 208/230V
Phase: Single Phase
Speeds: 4 Speed
RPM: 1075 RPM
Frame: 48
Shaft Diameter: 1/2"
Shaft Length: 2-1/2"
Rotation: CCW Lead End

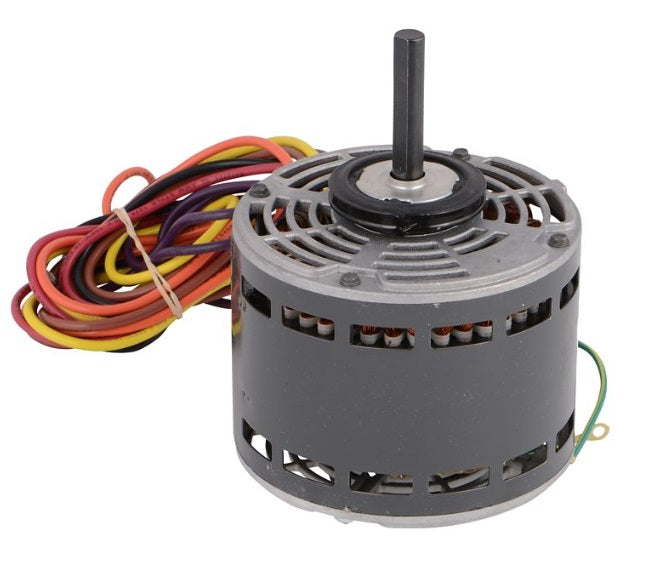

Lennox 32804 / P-8-8609 Blower Motor

The Lennox 32804 / P-8-8609 is a 1/3 HP furnace blower motor used in select Lennox HVAC systems. It operates on 208/230V, has four speeds and runs at 1075 RPM.

The blower motor turns the furnace blower wheel, moving heated or cooled air through the duct system and into the home.

Common Symptoms of a Failed 32804 Blower Motor

• Blower motor will not start
• Furnace runs but there is no airflow
• Weak airflow from supply vents
• Blower starts and stops
• Motor overheats
• Motor shuts off on thermal overload
• Blower runs slower than normal
• Grinding, squealing or excessive motor noise
• Blower wheel is difficult to turn
• Motor draws excessive amperage
• Burning smell from the blower compartment

A failing 32804 / P-8-8609 blower motor can cause poor airflow and may cause the furnace to shut down on its high-limit safety if there is not enough air moving across the heat exchanger.

Buy the Lennox 32804 / P-8-8609 1/3 HP Blower Motor from OemHvacPartsCanada.ca.
