Lennox 17F50 619598-46 Cold End Collector Box Kit – EL296 Series
  • Lennox 17F50 619598-46 Cold End Collector Box Kit – EL296 Series
  • Lennox 17F50 619598-46 Cold End Collector Box Kit – EL296 Series
Lennox 17F50 619598-46 Cold End Collector Box Kit – EL296 Series

Lennox 17F50 619598-46 Cold End Collector Box Kit – EL296 Series

$255.00
$255.00

Specifications

  • Catalog Number: 17F50
  • Part Number: 619598-46
  • Brand: Lennox
  • Product Type: Cold End Header / Collector Box Kit
  • Application: Gas Furnace
  • Furnace Series: EL296 Series
  • Weight: 1.5 lb
  • OEM Replacement Part: Yes

Lennox identifies 17F50 as the catalog number and 619598-46 as the model/part number for this collector box kit.

Lennox 17F50 / 619598-46 Collector Box

The Lennox 17F50, part number 619598-46, is an OEM cold end collector box kit used in select Lennox EL296 Series gas furnaces.

The collector box is part of the furnace combustion and condensate system and is supplied as a kit with the collector box assembly and related drain components.

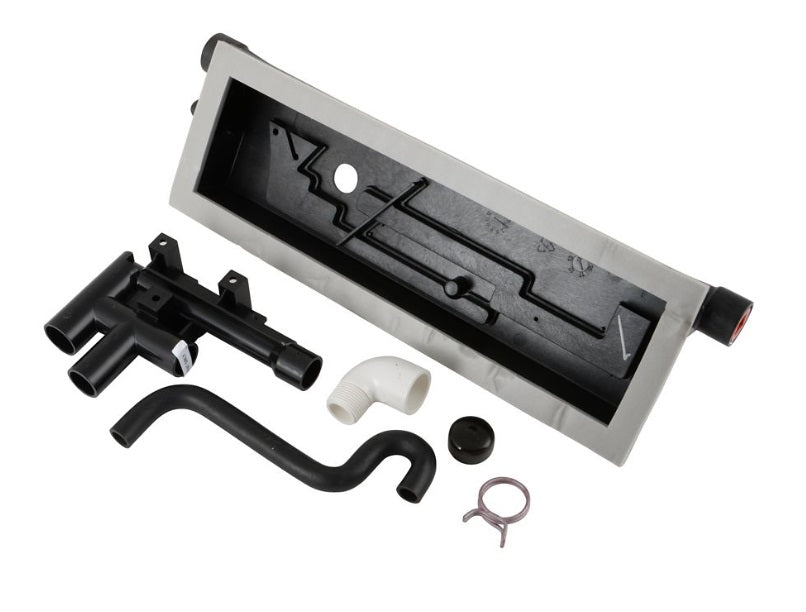

Kit Includes

The 17F50 / 619598-46 kit includes:

  • Cold End Collector Box Assembly
  • 103429-01 Condensate Trap Assembly
  • 103674-01 1" Vinyl Cap
  • 101625-02 1" Drain Clamp
  • 580324-01 Vent Label
  • 103177-02 3/4" Street Elbow
  • 102809-03 Drain Hose
  • 102868-01 1/2" Drain Plug

These components are listed by Lennox as part of the 17F50 kit.

Replacement & Cross-Reference Part Numbers

The Lennox 17F50 is associated with:

  • 17F50
  • 619598-46
  • 61959846
  • 105670-20
  • 10F95
  • 75W11
  • 77W15
  • 86W20
  • 95W94

Canadian parts data lists 10F95, 75W11, 77W15, 86W20 and 95W94 as older Lennox numbers replaced by 17F50.

Compatible Lennox Furnace Models

The 17F50 / 619598-46 is listed for select Lennox furnaces including:

EL296 Series

  • EL296UH070XV36B
  • EL296UH070XE36B
  • EL296DF070XE48B
  • EL296DF070XV48B

Additional documented applications include:

  • 95AF2DF070V16B
  • 95AF2UH070V12B
  • EL195DF070XE48B
  • EL195UH070XE36B
  • EL196UH070XE36B
  • ML195DF070XP36B
  • ML195UH070XP36B
  • ML196UH070XE36B
  • ML196UH070XE48B
  • ML296DF070XV48B

These model applications are listed for the 17F50 by a Canadian Lennox parts distributor.

Common Reasons for Replacing a Collector Box

  • Collector box is cracked
  • Water leaking from the collector box
  • Damaged drain connection
  • Condensate leaking inside the furnace
  • Deteriorated or damaged collector box assembly

Lennox 619598-46 Replacement Collector Box

If the existing furnace collector box is marked 619598-46, Lennox identifies 17F50 as the catalog number for the replacement cold end header box kit.

Because Lennox uses several different collector boxes within the EL296 family, the furnace model and original part number should be matched before ordering.
