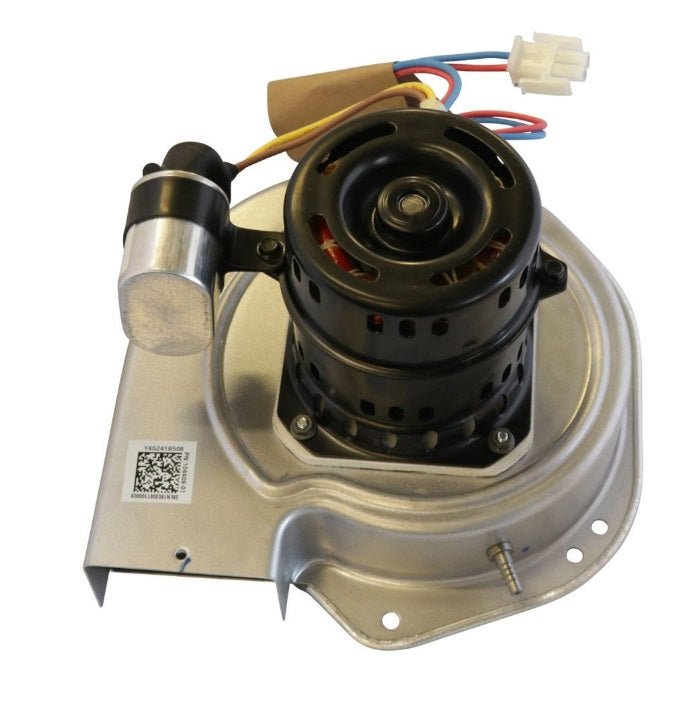

Lennox 13U29 104409-01 Combustion Air Draft Inducer Blower – 208-230V

Specifications

• Catalog Number: 13U29
• Part Number: 104409-01
• Brand: Lennox
• Product Type: Combustion Air / Draft Inducer Blower
• Horsepower: 1/18 HP
• Voltage: 208-230V
• Amperage: 0.35A
• Speed: 3450 RPM
• Frequency: 50/60 Hz
• Phase: Single Phase
• Rotation: CCWLE
• Application: Select Lennox commercial rooftop HVAC units

Lennox confirms the 1/18 HP, 208-230V, 0.35A and 3450 RPM specifications for the 104409-01.

Lennox 13U29 / 104409-01 Draft Inducer Blower

The Lennox 13U29, part number 104409-01, is a 208-230V combustion air blower used in select Lennox heating and rooftop HVAC equipment.

The motor operates at 3450 RPM and is rated at 1/18 HP and 0.35 amps. Lennox identifies 13U29 as the catalog number and 104409-01 as the original model/part number.

Part Numbers

• 13U29
• 104409-01
• 10440901

The older 104409-01 part number is now sold under Lennox catalog number 13U29. Parts Town also identifies 104409-01 as the previous part number for 13U29.

Compatible Lennox Models

The 13U29 / 104409-01 is listed for select Lennox models including:

KDB Series
KDB092H4-01
KDB102H4-01
KDB122H4-01

KGA Series
KGA092H4-01, KGA092H4-02, KGA092H4-03, KGA092H4-04
KGA092S4-03
KGA102H4-01, KGA102H4-02, KGA102H4-03
KGA102S4-02, KGA102S4-03
KGA120H4-01
KGA120S4-02, KGA120S4-03
KGA150S4-02, KGA150S4-03
KGA156H4-01, KGA156H4-02, KGA156H4-03
KGA180H4-01, KGA180H4-02
KGA180S4-01, KGA180S4-02
KGA210H4-01
KGA210S4-01, KGA210S4-02
KGA240H4-01, KGA240H4-02
KGA240S4-01, KGA240S4-02
KGA300S4-01, KGA300S4-02

These applications are listed for the 104409-01 / 13U29 by Heating Parts Canada.

Common Signs of a Failed Draft Inducer Blower

• Inducer motor will not start
• Motor runs intermittently
• Motor is noisy during operation
• Inducer wheel does not reach proper speed
• Motor overheats or shuts down
• Heating cycle fails to start
• Pressure switch does not close due to insufficient draft

Lennox 104409-01 Replacement

If the existing combustion air blower is marked 104409-01, Lennox currently identifies the replacement under catalog number 13U29.

Match the original part number, voltage and equipment model before replacing the inducer assembly.

Buy Lennox 13U29 / 104409-01 in Canada

Buy the Lennox 13U29 / 104409-01 208-230V Combustion Air Draft Inducer Blower from OemHvacPartsCanada.ca.

Replacement combustion air blower for select Lennox KDB and KGA series rooftop HVAC units.
