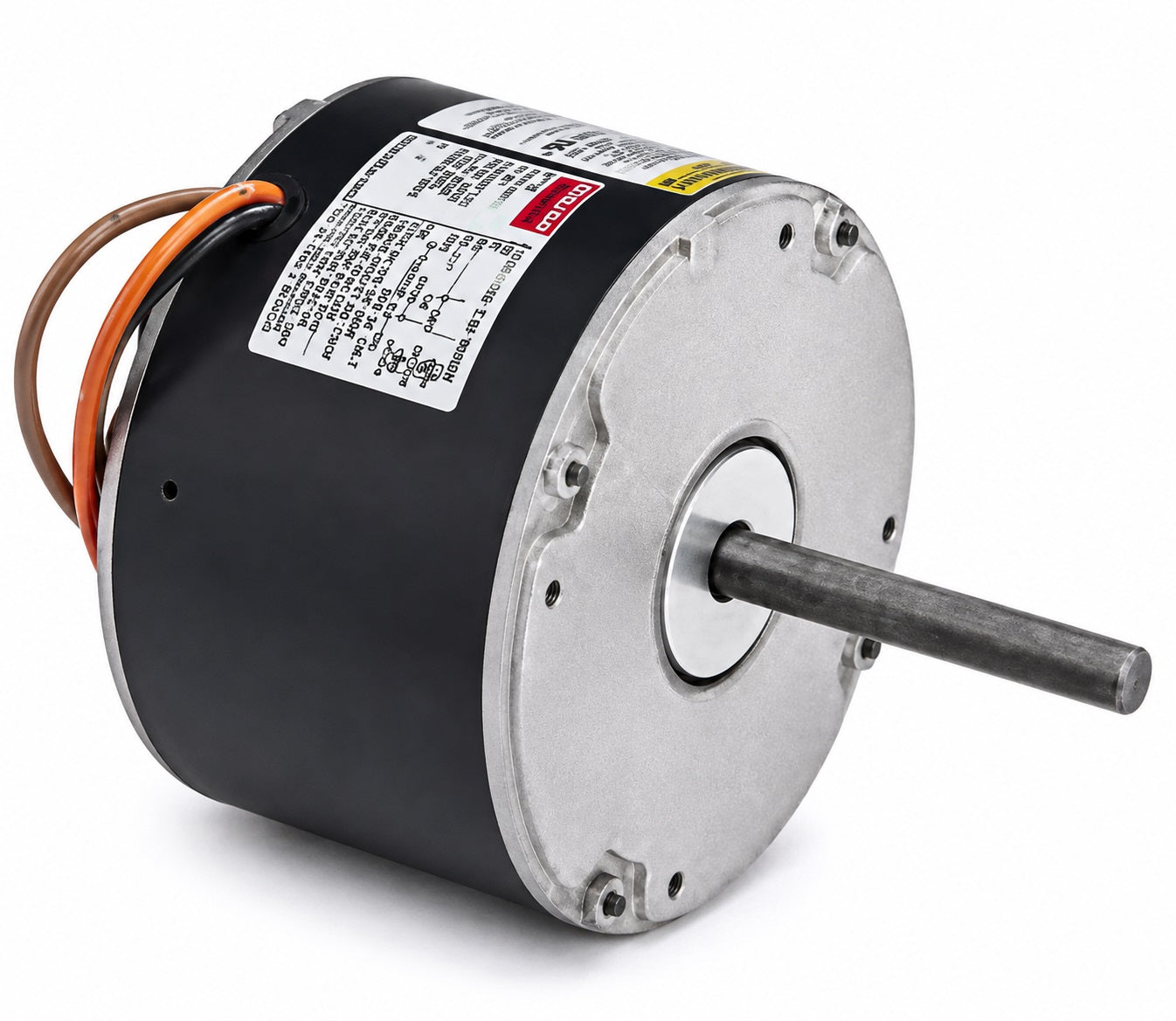

ICP 1086954 1/5 HP 208/230V Condenser Fan Motor

Specifications

• Part Number: 1086954
• Brand: International Comfort Products (ICP)
• Product Type: Condenser Fan Motor
• Horsepower: 1/5 HP
• Voltage: 208/230V
• Phase: Single Phase
• Frequency: 60 Hz
• Speed: 1075 RPM
• Speeds: 2 Speed
• Shaft Length: 2-1/2 in.
• Motor Diameter: 5-5/8 in.
• Application: Residential AC Condenser
• OEM ICP Replacement Motor

ICP 1086954 Condenser Fan Motor

The 1086954 is an OEM condenser fan motor used on select ICP, Heil, Tempstar, KeepRite, Comfortmaker and Arcoaire air conditioners. It powers the outdoor condenser fan to move air across the condenser coil.

Common Symptoms of a Failed 1086954 Motor

• Condenser fan will not start
• Fan runs slowly
• Motor runs intermittently
• Motor overheats and shuts off
• Grinding or bearing noise
• Motor shaft is seized or difficult to turn
• Outdoor fan stops while the compressor continues running
• AC has poor cooling due to loss of condenser airflow

Buy ICP 1086954 Condenser Fan Motor in Canada

Buy the ICP 1086954 1/5 HP 208/230V 1075 RPM Condenser Fan Motor from OemHvacPartsCanada.ca for OEM furnace parts and AC parts across Canada.
