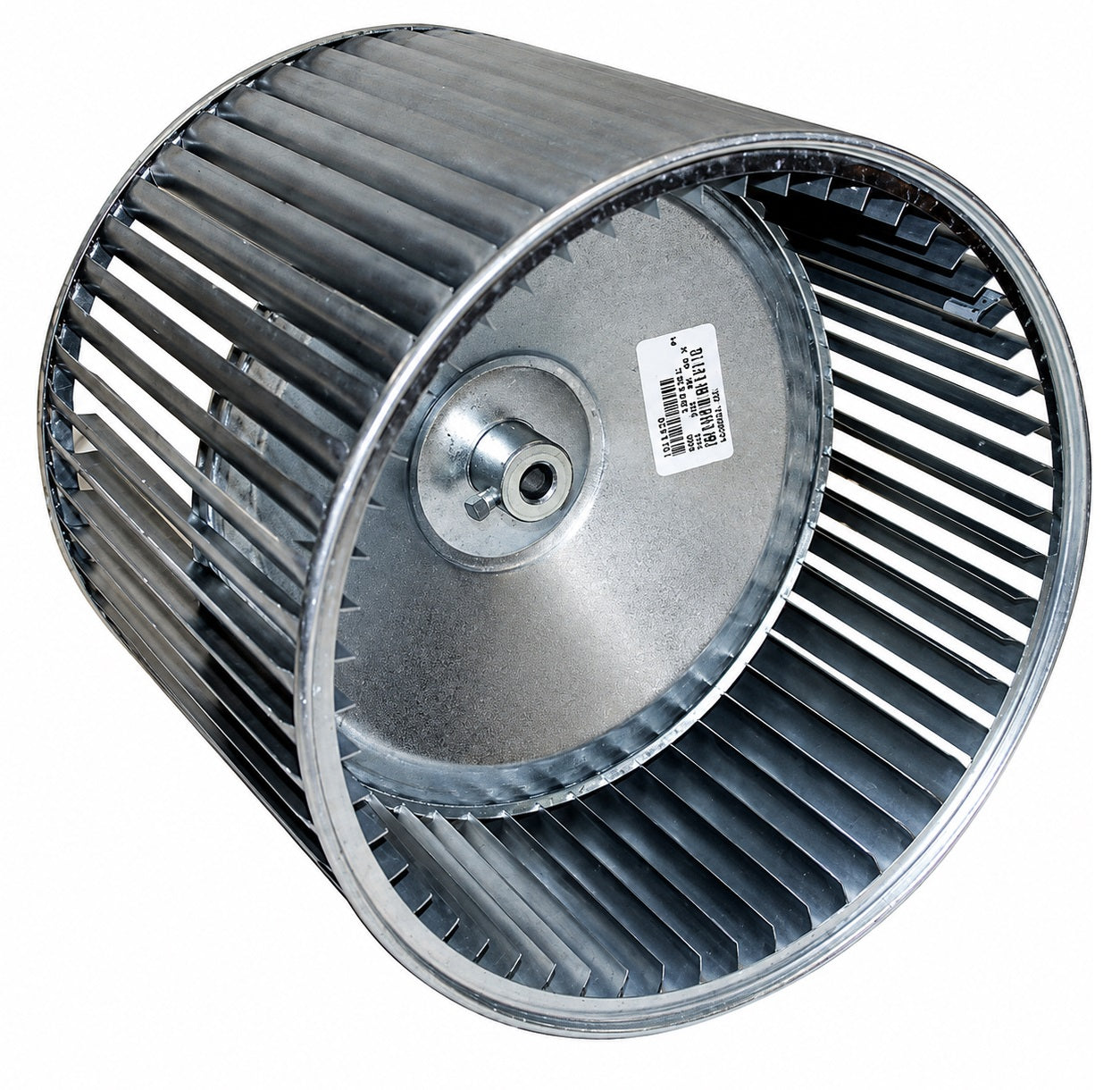

ICP 1011420 Furnace Blower Wheel – 11" x 10", 1/2" Bore

Specifications

Part Number: 1011420
Brand: ICP / International Comfort Products
Product Type: Furnace Blower Wheel / Squirrel Cage
Diameter: 11"
Width: 10"
Bore Size: 1/2"
Rotation: Clockwise (CW)
Application: Furnace Blower Assembly
OEM Replacement: Yes

Furnace Models That Use the 1011420

The ICP 1011420 blower wheel is used in many Heil, Tempstar, Comfortmaker, KeepRite and Arcoaire furnaces.

Compatible furnace models include:

C8DNL075F16A1
C8DNL075F16B1
C8DNL075F16B2
C8DNL100F14A1
C8DNL100F14B1
C8DNL100L20A1
C8DNL100L20B1
C8DNL125L20A1
C8DNL125L20B1
C8MPL075F16A1
C8MPL100F20A1
C8MPL100J20A1
C8MPL125J20A1
C8MPN100F20A1
C8MPT100J20A1
C9MPD075F12A1
C9MPD080J16A2
C9MPD100J14A1
C9MPD100J20A1
C9MPD125L20A1
C9MPT100J16A1
C9MPT125L20A1
C9MPV100J20A1
H8MPL100F20A1
H8MPT100J20A1
N9MPD100J14A2

Signs of a Bad 1011420 Blower Wheel

A damaged 1011420 blower wheel can cause excessive vibration, rattling or scraping noises from the blower compartment. Cracked or missing fins can throw the wheel out of balance and reduce airflow through the furnace.

Common signs include:

• Rattling or scraping from the blower
• Excessive vibration
• Cracked or broken blower fins
• Blower wheel wobbling while running
• Reduced airflow from the vents
• Wheel rubbing against the blower housing
• Blower motor running but little air moving through the ductwork

Buy the ICP 1011420 Furnace Blower Wheel from OemHvacPartsCanada.ca.
