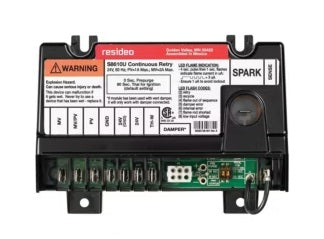

Honeywell S8610U3009 Universal Pilot Ignition Module

Specifications

Part Number: S8610U3009
Manufacturer Number: S8610U3009/U
Brand: Resideo / Honeywell Home
Product Type: Universal Intermittent Pilot Ignition Module
Voltage: 24 VAC
Frequency: 60 Hz
Ignition Type: Intermittent Pilot Ignition
Ignition Source: Internal High-Voltage Spark Generator
Ignition Trial Time: Configurable 15 or 90 Seconds
Pre-Purge: Configurable 0 or 30 Seconds
Flame Sensing: Single Rod or Two-Rod / Remote Sense
Gas Compatibility: Natural Gas or LP
Flame Failure Response: Approximately 2 Seconds
Operating Temperature: -40°F to 165°F (-40°C to 74°C)
Application: Furnaces, Boilers and Other Compatible Gas-Fired Heating Equipment
Safety Function: Ignition Sequencing, Flame Monitoring and Safety Shutoff
Replacement Type: Universal Service Replacement Ignition Control

The Resideo Honeywell S8610U3009 is a universal intermittent pilot ignition control designed for servicing gas-fired furnaces, boilers and other heating equipment that use an intermittent pilot ignition system.

The module controls the ignition sequence, generates the spark for pilot ignition, monitors the pilot flame and controls the gas valve during the heating cycle.

The S8610U3009 is designed as a universal replacement and can replace more than 400 intermittent pilot ignition modules from manufacturers including Honeywell/Resideo, White-Rodgers, Robertshaw, Johnson Controls and UTEC.

Common Symptoms of a Failed S8610U3009 Ignition Module

A faulty intermittent pilot ignition module can cause:

• No spark during a call for heat
• Pilot will not ignite
• Pilot lights but main burners do not ignite
• Main gas valve does not energize
• Furnace or boiler repeatedly attempts ignition
• Pilot lights and then shuts down
• Burners operate intermittently
• Ignition sequence stops before the main burner starts
• Module does not respond to a call for heat
• System repeatedly enters ignition retry
• Flame is present but the module does not recognize the flame
• Heating equipment works intermittently and then fails to ignite

These symptoms can also be caused by problems with the pilot assembly, flame-sensing circuit, gas valve, wiring, grounding or other components in the heating system. Proper diagnosis should be performed before replacing the ignition module.

Universal Replacement Ignition Control

The S8610U3009 is specifically designed to simplify replacement of older intermittent pilot ignition controls. It can be used in both single-rod and separate flame-sensor applications and includes spark cable adapters for replacing various OEM and competitive ignition controls.

Because this is a universal replacement control, the original ignition module number and equipment requirements should be checked against the manufacturer's cross-reference information before replacement.

S8610U3009 Furnace and Boiler Ignition Module

The Resideo Honeywell S8610U3009 Universal Intermittent Pilot Ignition Module is used on compatible gas furnaces, boilers and other gas-fired heating appliances equipped with intermittent pilot ignition.

Always verify the S8610U3009 part number, voltage, ignition configuration and equipment compatibility before ordering.

Buy the Resideo Honeywell S8610U3009 Universal Intermittent Pilot Ignition Module from OemHvacPartsCanada.ca.
