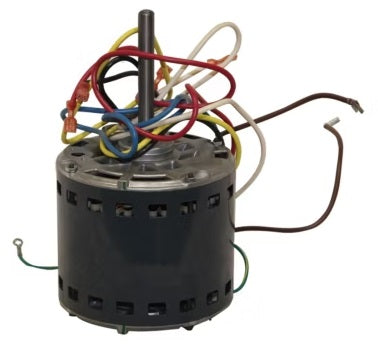

HC43AE117 Blower Motor

Specifications

Part Number: HC43AE117
Brand: Carrier Factory Authorized Parts
Product Type: Direct Drive Blower Motor
Application: Residential Furnaces and Air Handlers
Motor Type: PSC (Permanent Split Capacitor)
Horsepower: 1/2 HP
Voltage: 115 VAC
Full Load Amps: 7.9 FLA
Frequency: 60 Hz
Speed: 1075 RPM
Number of Speeds: 4-Speed
Phase: Single Phase
Rotation: Counter Clockwise Lead End (CCWLE)
Frame: NEMA 48
Capacitor Required: 10 MFD
Shaft Diameter: 1/2"
Shaft Length: 4"
Mounting: Resilient Ring (Belly Band)
Bearing Type: Sleeve Bearings
Genuine OEM Replacement Part

Common Symptoms

If your Carrier, Bryant, Payne, or compatible furnace or air handler in Calgary, Edmonton, Red Deer, Lethbridge, Medicine Hat, or anywhere in Alberta, or throughout the Greater Toronto Area, including Toronto, Mississauga, Brampton, Vaughan, Markham, Richmond Hill, Oakville, Burlington, Milton, Ajax, Pickering, and Oshawa, is experiencing weak airflow, little or no heating or cooling, a blower motor that hums but won't start, intermittent blower operation, grinding or squealing noises, overheating, or repeated high-limit trips, the HC43AE117 blower motor may need to be replaced. This genuine OEM 1/2 HP, 115V, 1075 RPM, 4-speed PSC blower motor is designed to restore proper airflow and reliable operation to your HVAC system.

Buy your genuine OEM HC43AE117 Blower Motor from OemHvacPartsCanada.ca.
