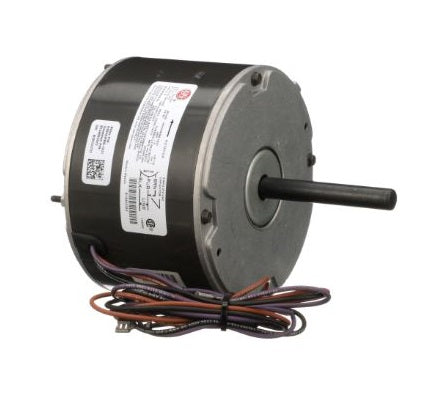

Goodman B13400252S Condenser Fan Motor – 1/6 HP 208-230V 1075 RPM
Goodman B13400252S Condenser Fan Motor – 1/6 HP 208-230V 1075 RPM
Specifications
- Part Number: B13400252S
- Brand: Goodman
- Product Type: Condenser Fan Motor
- Horsepower: 1/6 HP
- Voltage: 208-230V
- Amperage: 1.0A
- Speed: 1075 RPM
- Speeds: Single Speed
- Phase: Single Phase
- Frequency: 50/60 Hz
- Poles: 8
- Duty: Continuous
- Insulation Class: Class B
- Rotation: CCW
- Shaft Length: 2.5 in.
- Capacitor: 5 MFD / 370V
- Application: Goodman, Amana and Janitrol air conditioning systems
The core specifications are supported by multiple listings for the B13400252S.
Replacement & Cross Reference Part Numbers
The Goodman B13400252S replaces or cross-references with:
- B13400252S
- B13400252
- 20181704
- 20181704S
- 20181703
- Genteq 5KCP29ECA033S
The important ones I'd particularly want Google to see are B13400252, 20181704 and 5KCP29ECA033S.
Compatible Brands
- Goodman
- Amana
- Janitrol
Compatible Condenser Models
CK / CKL Series:
CK42-1, CKL18-1, CKL18-1B, CKL18-1C, CKL18-1D, CKL18-1L, CKL18-1M, CKL24-1, CKL24-1D, CKL24-1E, CKL24-1F, CKL24-1G, CKL24-1H, CKL24-1K, CKL24-1L, CKL24-1M, CKL30-1, CKL30-1D, CKL30-1E, CKL30-1F, CKL30-1G, CKL30-1L, CKL42-1, CKL42-1A, CKL42-1B, CKL42-1L
CLJ Series:
CLJ18-1, CLJ18-1A, CLJ24-1A
CPKE / CPLE Series:
CPKE18-1, CPKE18-1A, CPKE24-1, CPKE24-1A, CPKE30-1, CPLE18-1B, CPLE24-1B, CPLE30-1A, CPLE48-1A
MK Series:
MK24-1, MK24-1D, MK30-1, MK30-1A, MK30-1D, MK42-1
Goodman's repair-parts documentation specifically identifies B13400252S for several of the MK models, while the older Goodman/Janitrol applications are documented by multiple parts sources.
Goodman B13400252S Condenser Fan Motor
The Goodman B13400252S is a 1/6 HP, 208-230V condenser fan motor used on select Goodman, Amana and Janitrol air conditioning systems.
This motor operates at 1075 RPM and replaces older Goodman condenser motor numbers including B13400252 and 20181704. It also cross-references with Genteq 5KCP29ECA033S.
Common Symptoms of a Failed Condenser Fan Motor
- Condenser fan will not start
- Fan motor starts intermittently
- Motor overheats and shuts off
- Fan runs slowly
- Grinding or bearing noise
- Motor hums but will not start
- Compressor operates but condenser fan does not
- Outdoor unit shuts down during operation
Buy Goodman B13400252S Condenser Fan Motor in Canada
Buy the Goodman B13400252S 1/6 HP 208-230V Condenser Fan Motor from OemHvacPartsCanada.ca for Goodman, Amana and Janitrol air conditioning systems in Canada.
