Fasco A211 Lennox Draft Inducer Motor – 7021-11634, 81M1601, 83M56

Specifications

• Part Number: A211
• Brand: Fasco
• Product Type: Draft Inducer Blower Assembly
• Horsepower: 1/15 HP
• Voltage: 115V
• Amperage: 2.35A
• Speed: 3400 RPM
• Speeds: Single Speed
• Phase: Single Phase
• Frequency: 60 Hz
• Rotation: CCW
• Motor Type: Shaded Pole
• Bearing Type: Ball Bearing
• Motor Diameter: 3.3 in.
• Thermal Protection: Yes
• Outlet Shape: Round
• Application: Lennox, Armstrong, Concord and Ducane gas furnaces

Replacement & Cross Reference Part Numbers

The Fasco A211 is a replacement for:

• 7021-11634
• 702111634
• 81M16
• 81M1601
• 83M56
• 83M5601
• LB-94724H
• 57M85
• 7021-11845
• 7121-9450E
• Dayton 40LY13

Common Furnace Models

Used on select Lennox G43UF and G51MP gas furnaces, including:

• G43UF-24B-045
• G43UF-24B-070
• G43UF-36B-070
• G43UF-36C-090
• G43UF-48C-090
• G43UF-48C-110
• G43UF-60C-110
• G43UF-60D-135
• G51MP-24B-045
• G51MP-36B-045
• G51MP-36B-070
• G51MP-36C-090
• G51MP-48C-090
• G51MP-48C-110
• G51MP-60C-090
• G51MP-60C-110
• G51MP-60D-135

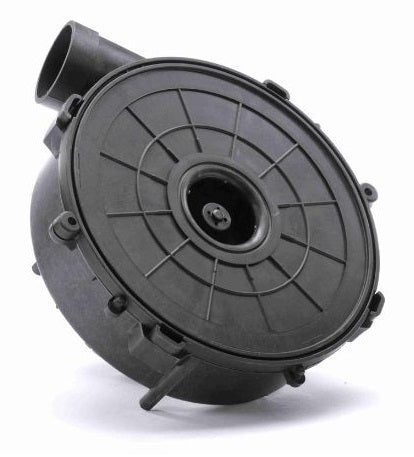

Fasco A211 Draft Inducer Motor

The Fasco A211 is a 115V, 3400 RPM draft inducer assembly used on select Lennox, Armstrong, Concord and Ducane gas furnaces. It replaces several Lennox OEM inducer numbers including 81M1601, 83M56 and LB-94724H.

Common Symptoms of a Failed A211 Inducer

• Inducer motor will not start
• Grinding or squealing noise
• Motor starts intermittently
• Pressure switch will not close
• Furnace will not ignite
• Furnace shuts down during the heating cycle
• Inducer motor overheats or stops during operation

Buy Fasco A211 Draft Inducer Motor in Canada

Buy the Fasco A211 / 7021-11634 Draft Inducer Motor from OemHvacPartsCanada.ca for Lennox, Armstrong, Concord and Ducane furnace parts in Canada.
