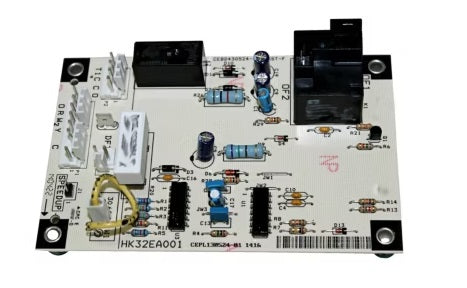

Carrier HK32EA001 Heat Pump Defrost Control Board

Specifications

Part Number: HK32EA001
Brand: Factory Authorized Parts™ / Carrier
Product Type: Defrost Control Board
Application: Heat Pumps
Control Type: Time / Temperature Defrost Control
Defrost Intervals: 30, 60 or 90 Minutes – Selectable
Defrost Termination: Defrost Thermostat or 10-Minute Maximum
Speed-Up Test: Yes
Approvals: CSA Listed
OEM Replacement: Yes

Carrier HK32EA001 Defrost Control Board

The Carrier HK32EA001 defrost control board is a Factory Authorized Parts™ replacement control used in select Carrier, Bryant and Payne heat pumps.

The HK32EA001 controls the heat pump defrost sequence during heating operation. When defrost is required, the board controls the reversing valve and outdoor fan to allow heat to remove frost and ice from the outdoor coil.

The board provides selectable 30, 60 and 90-minute defrost intervals and works with the outdoor coil defrost thermostat to determine when the defrost cycle should begin and end.

Common Symptoms of a Failed HK32EA001 Defrost Board

• Heat pump will not enter defrost
• Outdoor coil becomes covered in frost or ice
• Heat pump remains in defrost
• Outdoor fan does not operate correctly
• Outdoor fan continues running during defrost
• Reversing valve does not switch during defrost
• Intermittent defrost operation
• Heat pump heating performance drops as outdoor coil freezes
• Burned or damaged components on the control board

Buy the Carrier HK32EA001 Heat Pump Defrost Control Board from OemHvacPartsCanada.ca.
