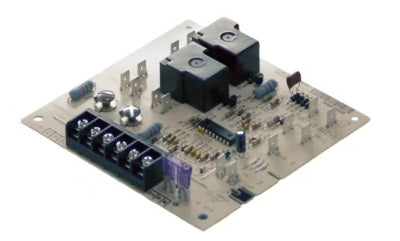

Carrier HH84AA020 Furnace Blower Control Board

Specifications

Part Number: HH84AA020
Brand: Carrier / Bryant / Payne
Product Type: Furnace Blower Control Board
Application: Gas Furnaces
Control Voltage: 18–30 VAC
Frequency: 50/60 Hz
Power Consumption: 5 Watts Maximum
N.O. Contact Rating: 20 Amps Resistive @ 240 VAC
N.C. Contact Rating: 10 Amps Resistive @ 240 VAC
Blower Run Time Delay: Fixed
Function: Controls furnace blower operation
OEM Replacement Part: Yes

Replaces

HH84AA011
HH84AA010
HH84AA013
CESO110018
302075-301
302075-302
302075-304
302075-352
302075-354
58GS302075352
58GS302075354

The Carrier HH84AA020 is used on select Carrier, Bryant and Payne furnaces and controls blower operation during heating and cooling cycles.

Common Symptoms of a Failed HH84AA020 Control Board

A failed HH84AA020 blower control board may cause the blower motor to not start, blower to run continuously, intermittent blower operation, no blower during a call for heat, no blower during AC operation, incorrect blower operation, or the furnace to stop responding properly to thermostat calls.

Always confirm the HH84AA020 part number and furnace model number before ordering.
