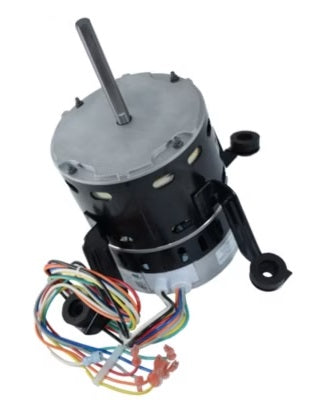

Carrier HD46MQ133 ECM Blower Motor – 3/4 HP, 115/120V, 1050 RPM

Specifications

Part Number: HD46MQ133
Brand: Carrier / Factory Authorized Parts™
Product Type: ECM Blower Motor
Motor Type: ECM (Electronically Commutated Motor)
Horsepower: 3/4 HP
Voltage: 115/120 VAC
Phase: Single Phase
Frequency: 50/60 Hz
Amperage: 8.8A
RPM: 1050 RPM
Rotation: Counterclockwise (CCW) – Lead End
Frame: 48
Shaft Diameter: 1/2"
Shaft Length: 3.92"
Bearing Type: Ball Bearing
Mounting: Arm and Grommet
Duty: Continuous
Insulation Class: B
UPC: 822529820194

Replaces

HD46MQ126
HD46MR123

Carrier HD46MQ133 ECM Blower Motor

The Carrier HD46MQ133 is a 3/4 HP ECM blower motor used in select Carrier, Bryant and Payne HVAC equipment. The motor operates at 115/120V and 1050 RPM with counterclockwise rotation when viewed from the lead end.

The HD46MQ133 operates the indoor blower wheel, moving air through the furnace or air handler and throughout the home's duct system.

Common Symptoms of a Failed HD46MQ133 Blower Motor

• Blower motor will not start
• Furnace blower not running
• Weak airflow from the registers
• Blower starts and stops intermittently
• Motor runs at an incorrect speed
• Blower motor is noisy
• Motor overheats or shuts down
• Furnace operates but blower does not
• Blower runs erratically
• Motor has power but does not operate
