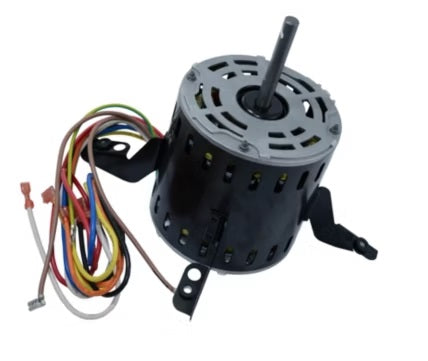

Carrier HC43TQ115 1/2 HP Furnace Blower Motor

Specifications

Part Number: HC43TQ115
Brand: Carrier / Factory Authorized Parts
Product Type: Furnace Blower Motor
Motor Type: PSC (Permanent Split Capacitor)
Horsepower: 1/2 HP
Voltage: 115 VAC
Amperage: 6.8 FLA
Frequency: 60 Hz
Phase: Single Phase
Speed: 1075 RPM
Number of Speeds: 5
Rotation: Counterclockwise (CCW), Lead End
Frame: 48
Shaft Diameter: 1/2"
Shaft Length: 3.3"
Bearing Type: Sleeve
Insulation Class: Class B
Duty: Continuous
Application: Furnace / HVAC Indoor Blower
OEM Replacement Part: Yes

Common Symptoms of a Failed HC43TQ115 Blower Motor

A failed or failing Carrier HC43TQ115 blower motor may cause the furnace blower to not start, weak airflow from the registers, intermittent blower operation, the motor to overheat and shut down on thermal protection, unusual humming or bearing noise, slow blower operation, or the blower wheel to require assistance to start.

During AC operation, a failed blower motor can result in little or no airflow from the registers and may cause the evaporator coil to freeze due to insufficient airflow.

Before replacing the motor, the run capacitor, supply voltage, blower wheel and furnace control board should also be checked.

Compatible Equipment

The HC43TQ115 is used in select Carrier, Bryant and Payne furnace systems. Known applications include select Carrier 59SC2 and 59SC5 series and Bryant 912 and 915 series furnaces.

Always confirm the HC43TQ115 part number and furnace model number before ordering.
