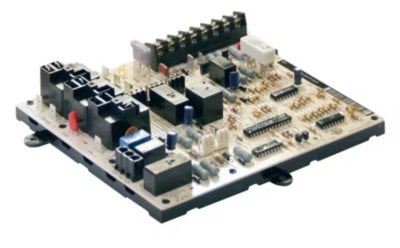

Carrier 325879-751 Furnace Control Board Kit

Specifications

• Part Number: 325879-751
• Type: Integrated Furnace Control Board Kit
• Stages: Two-Stage
• Ignition Type: Hot Surface Ignition (HSI)
• Ignition Voltage: 120 VAC
• Application: Gas Furnace
• Brands: Carrier, Bryant & Payne
• Replacement Board: HK42FZ017
• Kit Includes: Control board, wiring harness adapter and installation instructions
• Controls: Gas valve, igniter, blower motor, inducer motor, humidifier and electronic air cleaner
• Diagnostic LED: Yes
• Twinning Compatible: Yes

Replaces

• HK42FZ005
• HK42FZ010
• HK42FZ015
• HK42FZ017

The White-Rodgers 21V51D-751 and ICM2807 are also listed as replacements for the 325879-751.

Furnace Series

The 325879-751 is used in Carrier/Bryant furnace series including:

• 58UXV
• 352MAV
• 330JAV
• 58TMA
• 331AAV
• 58SUA
• 333BAV
• 333JAV
• 330AAV
• 58TUA
• 58DXT
• 58UHV
• 58UXT
• GB1AAV

Furnace Models

Known compatible Carrier models include:

• 58MTA060F10112
• 58MTA080F10112
• 58MTA080-F
• 58MTA100F10116
• 58MTA100F10120
• 58MTA120F10120
• 58MCA080-14
• 58MCA100-16
• 58MSA060-12

Additional compatible equipment includes:

• Bryant 310AAV042090
• Payne PG8UAA048080

Symptoms of a Failing Furnace Control Board

• Furnace will not start even though power is present.
• Burners will not ignite or fail to stay lit.
• Blower motor does not start.
• Blower runs continuously even when there is no call for heat.
• Inducer motor does not receive power during the heating sequence.
• Furnace starts and then shuts down.
• Intermittent heating or unpredictable furnace operation.
• Furnace short cycles.
• No power being sent to the gas valve or igniter when it should be energized.
• Incorrect or missing diagnostic LED operation.

These symptoms can also be caused by other furnace components, so the board should be properly diagnosed before replacement.
