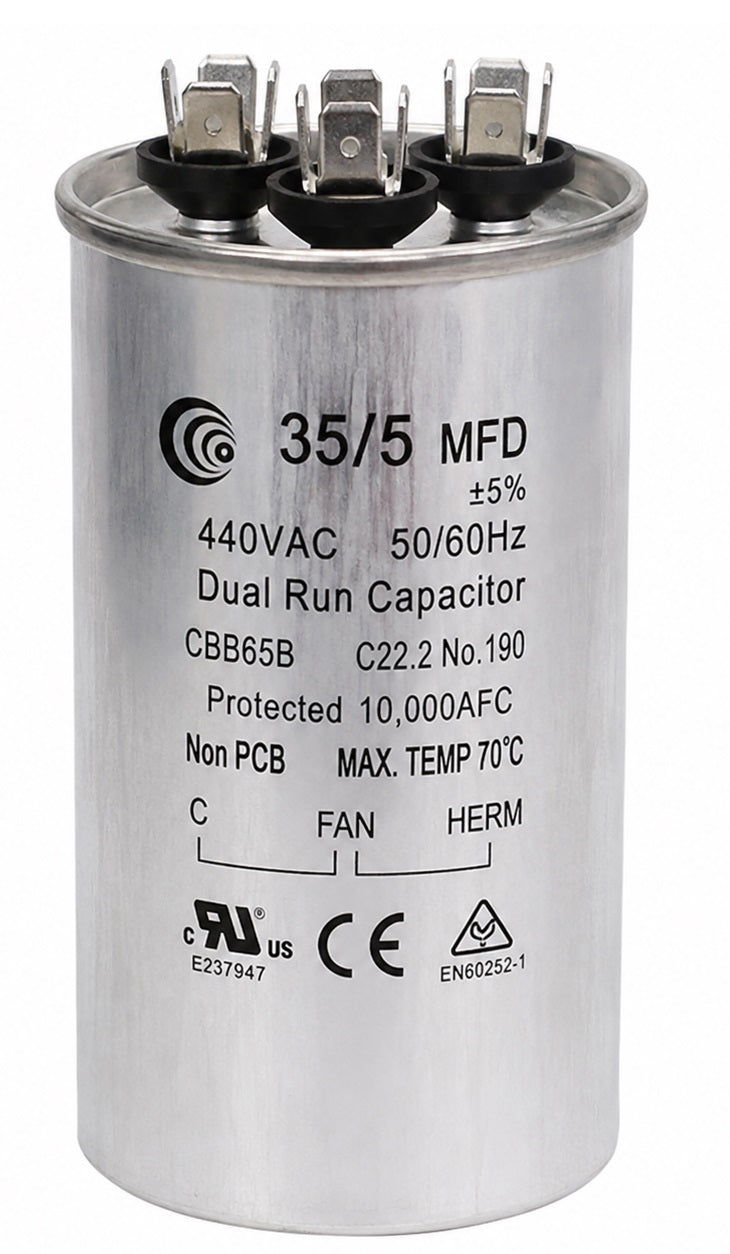

35/5 mfd 440v dual run capacitor

Specifications

Product Type: Dual Run Capacitor
Capacitance: 35/5 MFD (µF)
Voltage: 440 VAC
Shape: Round
Application: Air Conditioners & Heat Pumps
Compressor Rating: 35 MFD
Condenser Fan Rating: 5 MFD
Terminals: C / FAN / HERM
Frequency: 50/60 Hz

35/5 MFD 440V Dual Run Capacitor

The 35/5 MFD 440V round dual run capacitor is used in air conditioners and heat pumps to operate both the compressor and condenser fan motor from a single capacitor.

The 35 MFD side supplies the compressor while the 5 MFD side supplies the condenser fan motor. The capacitor has three terminal groups marked C (Common), FAN, and HERM (Compressor).

Common Symptoms of a Failed 35/5 MFD Capacitor

• Outdoor unit will not start
• Compressor will not start
• Condenser fan motor will not start
• Fan runs but compressor does not
• Compressor runs but condenser fan does not
• Motor or compressor struggles to start
• Humming from the outdoor unit
• Intermittent operation
• Capacitor tests below its rated MFD
• Swollen or leaking capacitor

A weak or failed dual run capacitor can prevent either the compressor, condenser fan motor, or both from operating properly.

Buy your 35/5 MFD 440V Round Dual Run Capacitor from OemHvacPartsCanada.ca.
