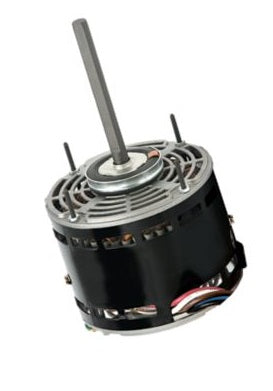

19L43 Multi-Horsepower Blower Motor – 1/6-1/2 HP, 115V, 1075 RPM

Specifications

Part Number: 19L43
Brand: FirstChoice
Product Type: Furnace Blower Motor
Motor Type: PSC
Horsepower: 1/6 to 1/2 HP
Voltage: 115 VAC
Phase: Single Phase
Frequency: 60 Hz
Speed: 4 Speed
RPM: 1075 RPM
Frame Size: 48
Shaft Size: 1/2" x 4.5"
Rotation: Reversible
Bearing Type: Ball Bearing
Mounting Position: Horizontal
Mounting: Belly Band / Hub Rings / Stud
Lead Length: 30"
Thermal Protection: Automatic
Duty: Continuous

FirstChoice 19L43 Blower Motor

The FirstChoice 19L43 is a multi-horsepower PSC blower motor used in residential furnaces and air handlers. It can be configured from 1/6 HP up to 1/2 HP and operates on 115V at 1075 RPM.

The 19L43 has four speed selections and reversible rotation, allowing it to be used in a range of furnace blower applications.

Common Symptoms of a Failed 19L43 Blower Motor

• Furnace blower will not start
• Blower hums but does not turn
• Weak airflow from supply vents
• Blower runs slower than normal
• Motor starts and stops intermittently
• Motor overheats
• Motor shuts off on thermal overload
• Grinding, squealing or excessive motor noise
• Blower wheel is difficult to turn
• Motor draws excessive amperage
• Furnace shuts down on high limit from lack of airflow
