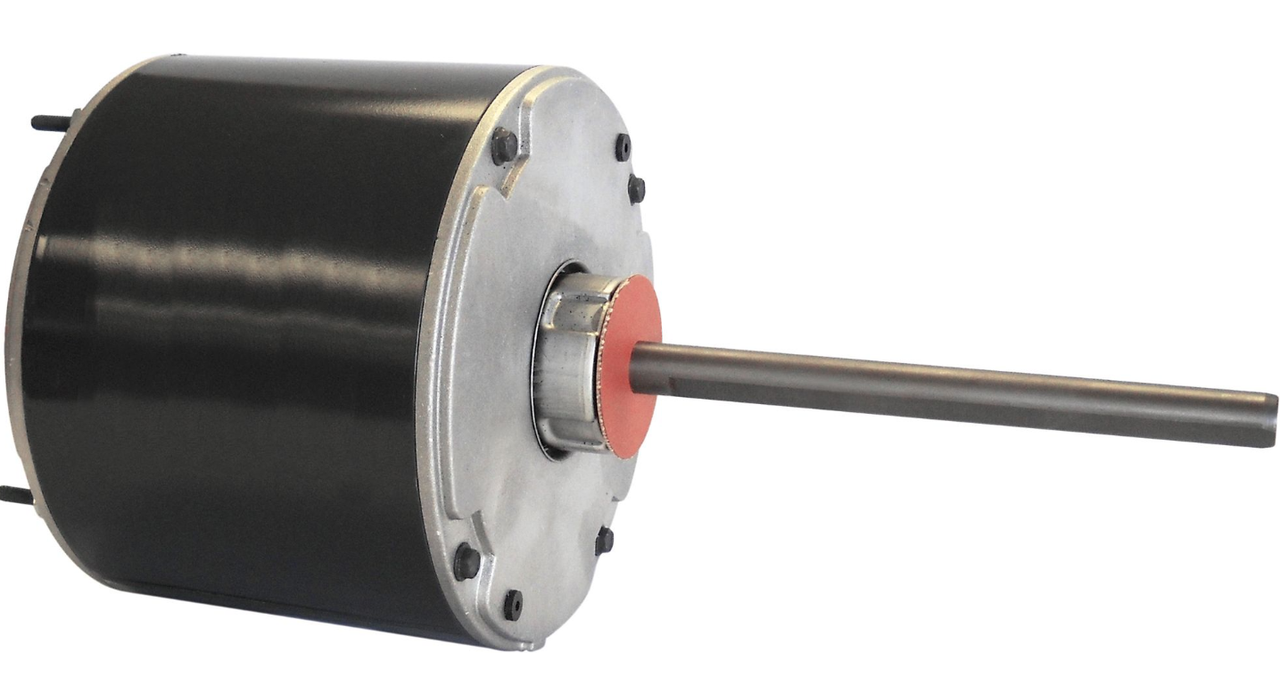

Lennox Condenser Fan Motor 19L42

Description

Material Description: FirstChoice Condenser Fan Motor, 1/6-1/3 HP, 208-230 V, 825 RPM

Specifications

• Horsepower: 1/6 - 1/3 HP
• Gross Weight: 19.6 lb
• Core Product: Yes
• Motor Type: PSC
• RPM: 825 RPM
• Motor HP: 1/3 - 1/6 HP
• Number of Speeds: 2 Speed
• Frame Size: 48
• Motor Mounting Position: Vertical
• Motor Mounting Type: Stud/Belly Band
• Motor Voltage: 208-230 VAC 1 Ph 60 Hz
• Shaft Size: 1/2 x 5 in
• Capacitor Value: See Box
• Rotation: Reversible
• Bearing Type: Ball
