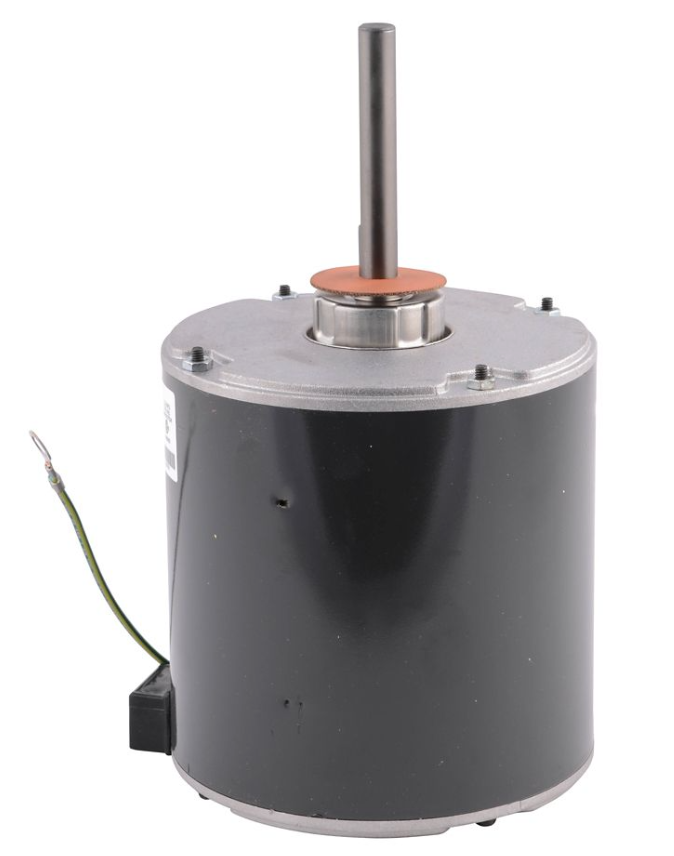

Lennox 27J07 Condenser Fan Motor | 27J0701

Brand: Lennox
Catalog Number: 27J07
Model/Part Number: 27J0701
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)

Material Description: Nidec Motor Corp 27J0701 Condenser Fan Motor, 1/2 HP, 460 Volts, 1075 RPM
EAN / UPC: 66255116808
Product Height: 9.75 IN
Horsepower: 1/2 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 17.6 LB
Amperage (AMPs): 1.2A
Bearing Type: Ball
Hertz: 60 Hz
Phase: 1 Phase
Shaft Length: 3.94 IN
Core Product: No
Speed: 1
Voltage Phase: 460-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5 IN
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/2 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Voltage: 460 VAC 1 Ph 60 Hz
Capacitor Value: 12.5 MFD 440 VAC
Rotation: CCWLE
Bearing Type: Ball

Works with the following model number:

CHA16-150, CHA24-1353, CHA24-1603, CHA24W-1353, CHP16-072, ELP120S4S, ELS090S4S, ELS150S4D, GCS16-150-270, GCS24-1353, GCS24-1353-270, GCS24-1603-270, GCS24W-1353-270, HP29-090, HP29-120, HS29-072, HS29-090, HS29-120, KCA090S4, KCA150S4, KCB060S4, KCB090S4, KCB150S4, KGA090S4, KGA150S, KGB060S4, KGB090S4, KGB150S4, KHA072S4, KHA102S4, KHA120S4, KHB074S4, LCA088H, LCA088S, LCA100S, LCA300S, LCB036H, LCB060H, LCB120H, LCB240H, LCC150S, LCC150S4, LCC300S, LCC300S4, LCE120H, LCE120H4, LCE240H, LCE240H4, LCH150S4, LGA088H, LGA088S, LGA100S, LGA300S, LGB036H, LGB060H, LGB120H, LGB240H, LGC150S, LGC150S4, LGC300S, LGC300S4, LGE120H, LGE120H4, LGE240H, LGE240H4, LGH150S4, LHA088S, LHA150S2, LSA072C, LSA090C, LSA090P, SCA120H4, SCA240H4, SCB288H4, SCC120H4, SGA120H4, SGC120H4, SWA120H4, TCA150S2, TCA210S2, TCA300S2, TGA150S2, TGA210S2, TGA300S2, THA150S2, TPA120S4S, TSA090S4, TSA150S4, ZCA150S4, ZCB150S4, ZGA150S4, ZGB150S4, ZHA120S
