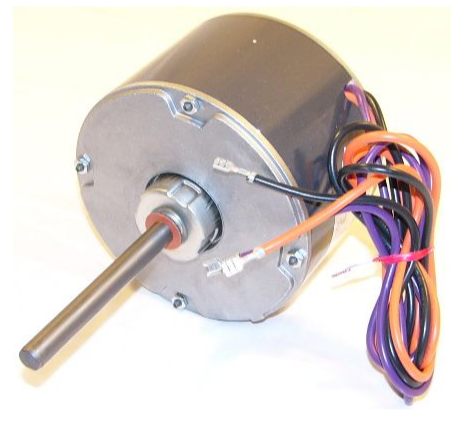

47F99 Lennox 47F9901, Condenser Fan Motor

Product Details

Brand: Lennox
Catalog Number: 47F99
Model/Part Number: 47F9901
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(s)

Description

Material Description: 47F9901, Condenser Fan Motor, 1/6 HP, 208-230/1, 1075 RPM
EAN / UPC: 288378

Specifications

• Horsepower: 1/6 HP
• Gross Weight: 10.3 lb
• Bearing Type: Sleeve
• Phase: 1 Phase
• Shaft Length: 5 in
• Core Product: No
• Speed: 1
• Voltage Phase: 208/230-1
• NEMA Frame Size: 48
• Rotation: CCW from lead end
• Shaft Diameter: 0.5 in

Motor Details

• Motor Type: PSC
• RPM: 1075 RPM
• Motor HP: 1/6 HP
• Number of Speeds: 1 Speed
• Frame Size: 48
• Motor Voltage: 208-230 VAC 1 Ph 60 Hz
• Capacitor Value: 5 MFD 370 VAC
• Rotation: CCWLE
• Bearing Type: Sleeve
