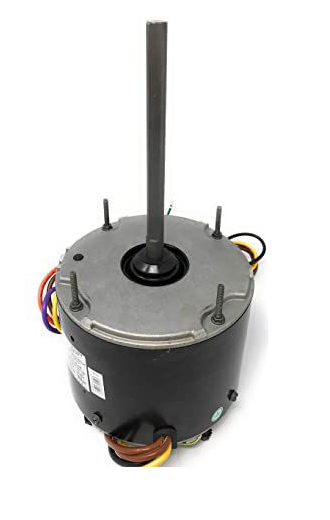

19U96 Lennox 103687-05, Condenser Fan Motor

Product Details

Brand: Lennox
Catalog Number: 19U96
Model/Part Number: 103687-05
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)

Material Description:
103687-05 Motor Fan, 1/3 HP, 208/230V

EAN / UPC: 66255156638

Specifications:

• Horsepower: 1/3 HP
• Type: ECM
• Gross Weight: 12 LB
• Bearing Type: Ball
• Hertz: 60 Hz
• Phase: 1 Phase
• Shaft Length: 4.12 IN
• Core Product: No
• Motor Type: ECM
• RPM: 300-1200 RPM
• Motor HP: 1/3 HP
• Number of Speeds: Variable
• Frame Size: 48
• Motor Mounting Position: Vertical
• Motor Mounting Type: Stud
• Motor Voltage: 230 VAC 1 Ph 60 Hz
• Shaft Size: 1/2 x 4.1 IN
• Rotation: CCWLE
• Bearing Type: Ball
• Speed: Variable
