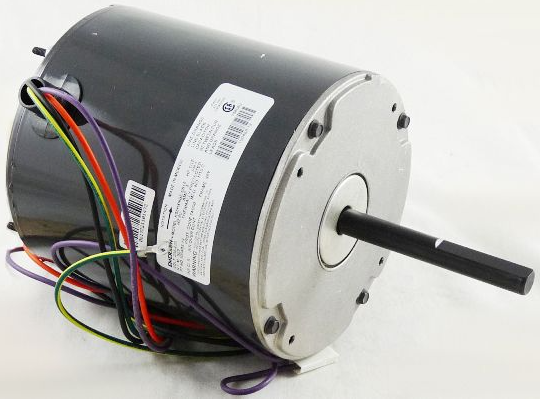

14Y65 Lennox 104607-01, Condenser Fan Motor

Product Details

Brand: Lennox
Catalog Number: 14Y65
Model/Part Number: 104607-01
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(s)

Description

Material Description: 104607-01 Condenser Fan Motor
EAN / UPC: 66255150655

Specifications

• Horsepower: 1/3 HP
• Type: PSC
• Gross Weight: 12 lb
• Amperage (AMPs): 1.65A
• Bearing Type: Ball
• Hertz: 60 Hz
• Phase: 1 Phase
• Shaft Length: 3.4 in
• Core Product: No

Motor Details

• Motor Type: PSC
• RPM: 1075 RPM
• Motor HP: 1/3 HP
• Number of Speeds: 1 Speed
• Frame Size: 48
• Motor Mounting Position: Vertical
• Motor Mounting Type: Belly Band
• Motor Voltage: 208-230 VAC 1 Ph 60 Hz
• Shaft Size: 1/2 x 3.4 in
• Capacitor Value: 10 MFD 370 VAC
• Rotation: CCWLE
• Bearing Type: Ball
• Speed: 1
