Carrier 1/2 HP 115V 1075RPM Direct Drive Blower Motor TP-E50-3SP1
)
Price:
$270.00
SKU:
TP-E50-3SP1
Brand:
Weight:
15.180 LBS
Availability:
In Stock
Shipping:
Calculated at checkout
Product Description

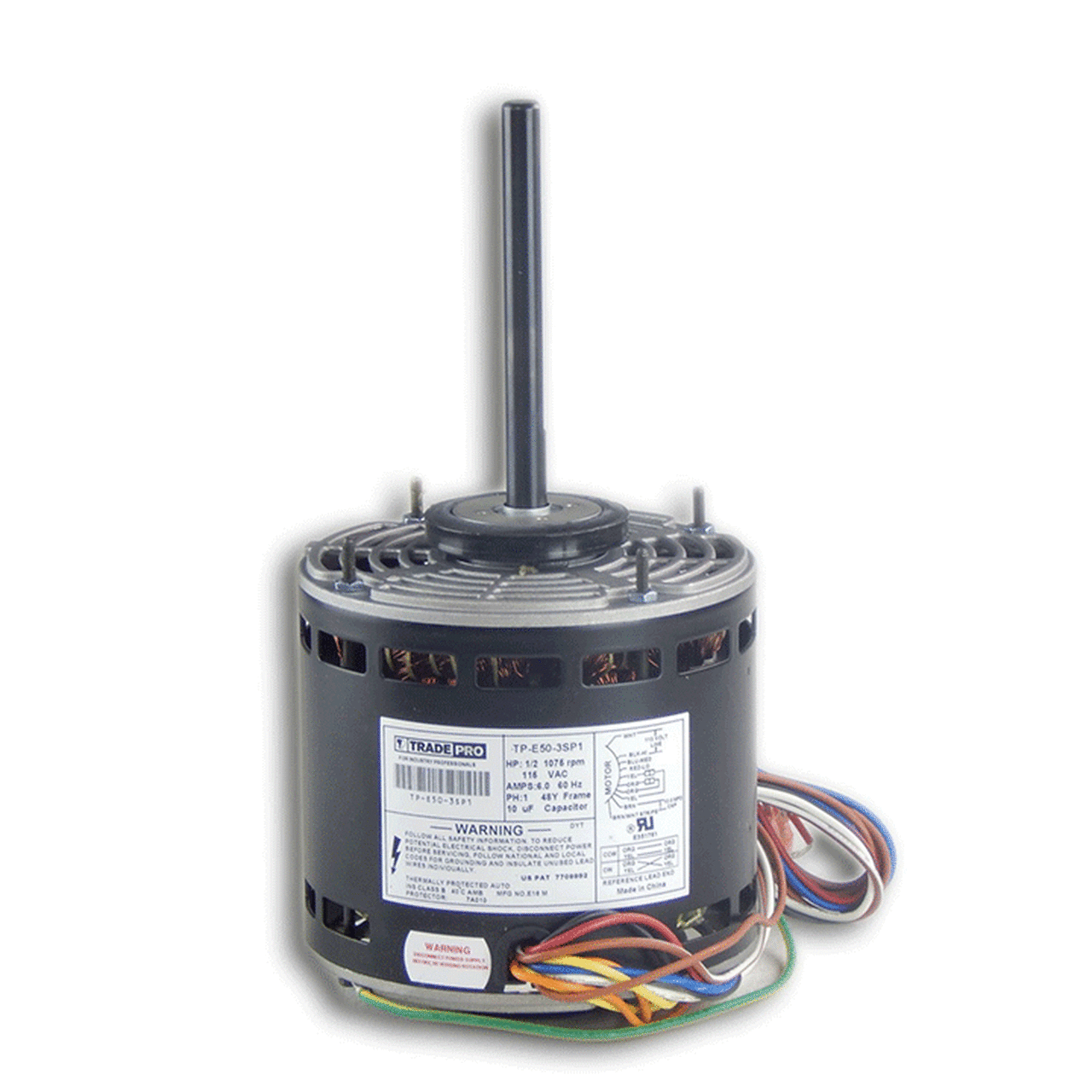

Carrier 1/2 HP 115V 1075RPM Direct Drive Blower Motor TP-E50-3SP1
Carrier 1/2 HP 115V 1075RPM Direct Drive Blower Motor TP-E50-3SP1 is available for shipment anywhere in Canada. This replacement parts has the exact dimension for easy installation. It pass the standard as replacement parts for optimum system performanace. Purchase it now to keep your unit running. If you are not sure whether this parts fits your unit, contact us with your model and serial number.
Specifications:
| Weight | 15.18 Pounds (lbs) |
| Width | 5.625 Inches (In) |
| Height | 5.625 Inches (In) |
| Country of Origin | MEX |
| Length | 6.402 Inches (In) |
| Amps | 6 |
| Bearing Type | Self Aligning (SAB) |
| Cycle/Hertz | 60 Hz |
| Duty | Continuous |
| Enclosure | Open Air Over (OPAO) |
| Full Load Amps | 6 |
| Insulation Class | Class B |
| Lead Length | 36" |
| Motor HP | 1/2 HP |
| Motor Type | PSC |
| NEMA Frame | 48Y |
| Number of Bearings | 2 |
| Number of Poles | 6 |
| Number of Speeds | Three |
| Phase | Single |
| Prop 65 | No |
| Protection | Automatic |
| Rotation | Reversible |
| RPM | 1075 |
| Service Factor | 1 |
| Shaft Diameter | 1/2" |
| Shaft Length | 5" |
| Thermal Protection | Yes |
| Voltage | 115 VAC |
| Warranty Offered | Yes |
